Double Chute Vertical Passage Marine Evacuation System

Inquire Add to Basket

  • DY050502

  • Evacuation System

  • 20m, CCS

  • DEYUAN MARINE

  • Professional Equipment

  • PE

  • CCS

  • China

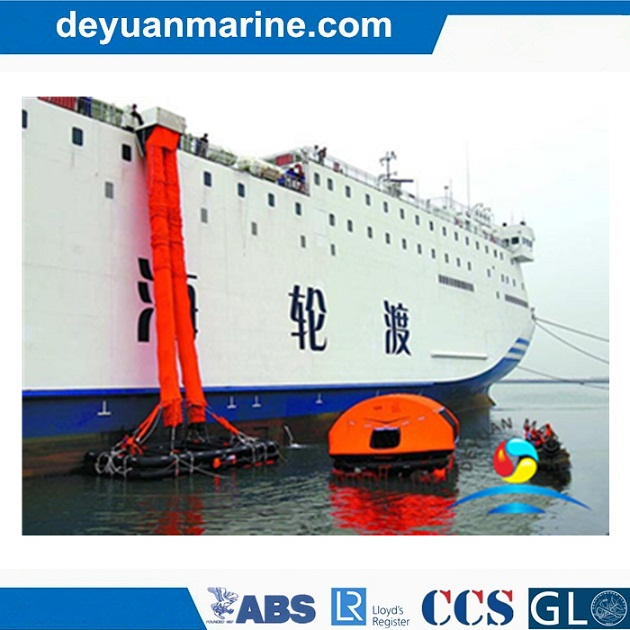

Double chute vertical passage marine evacuation system

The Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the system will be formed into the sea automatically.
Specification: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 and 22 meters
Approval: CCS
Approval standard
1. MSC.81(70)Revised Recommendation on Testing of Life-saving Appliances
2. MSC.48(66)International Life-saving Appliance Code
Model Maximum Stowage height
(meter)		 Maximum assigned
(person)		 Capacity on the platform
(person)		 Weight
(kg)		 Dimension of container
(mm)
MES-VP10.0-600 10 600 120 1900 3300×1500×2200
MES-VP11.0-600 11

1920
MES-VP12.0-600 12

1940
MES-VP13.0-600 13

1960
MES-VP14.0-600 14

1980
MES-VP15.0-600 15

2000
MES-VP16.0-600 16

2020
MES-VP17.0-600 17

2040
MES-VP18.0-600 18

2060
MES-VP19.0-600 19

2080
MES-VP20.0-600 20

2100
MES-VP21.0-600 21

2120
MES-VP22.0-600 22

2140
