Double Chute evacuation system Vertical Passage Marine Evacuation System

Double Chute evacuation system Vertical Passage Marine Evacuation System

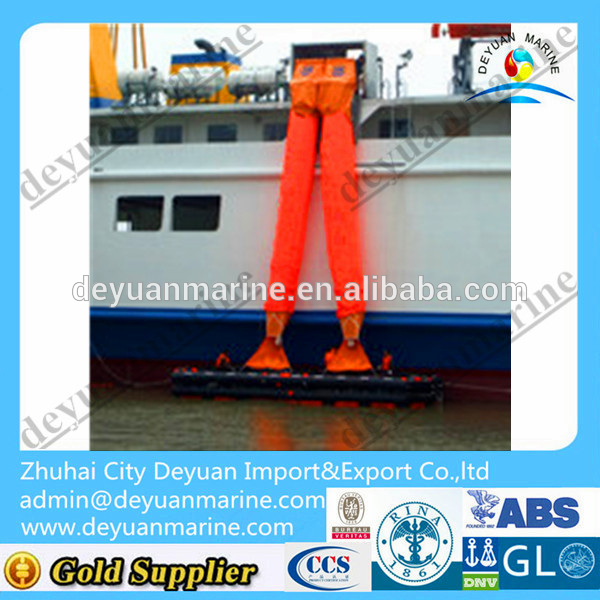

Double Chute Vertical Passage Marine Evacuation System

The Marine Evacuation System is stowed in the stainless steel container on the deck.

When releasing the handle, the system will be formed into the sea automatically.

Specification: 10,11,12,13,14,15,16,17,18,19,20,21 and 22 meters.

Approval: CCS.

Approval standard
1. MSC.81(70)Revised Recommendation on Testing of Life-saving Appliances
2. MSC.48(66)International Life-saving Appliance Code
Model	Maximum Stowage height (meter)	Maximum assigned (person)	Capacity on the platform (person)	Weight (kg)	Dimension of container (mm)
MES-VP10.0-600	10	600	120	1900	3300×1500×2200
MES-VP11.0-600	11			1920
MES-VP12.0-600	12			1940
MES-VP13.0-600	13			1960
MES-VP14.0-600	14			1980
MES-VP15.0-600	15			2000
MES-VP16.0-600	16			2020
MES-VP17.0-600	17			2040
MES-VP18.0-600	18			2060
MES-VP19.0-600	19			2080
MES-VP20.0-600	20			2100
MES-VP21.0-600	21			2120
MES-VP22.0-600	22			2140
