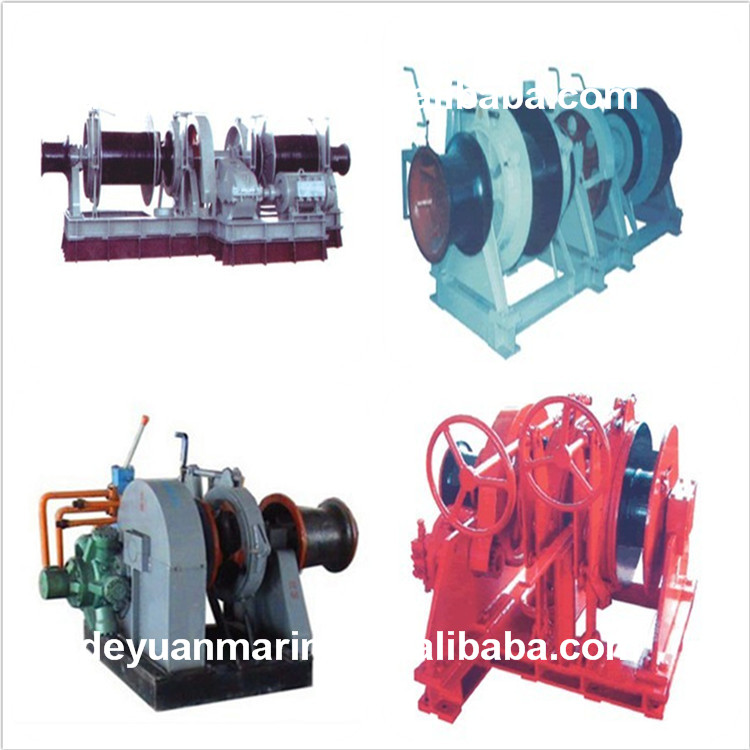

Double gypsy Windlass
General description
The windlass are for heaving, launching and mooring, which are in accordance with ISO4568-1986<>.
They are driven by hand, electric, hydraulic and diesel engine. Widely used onboard the ship,
can be lift up two anchor at one time with easy operation and longer life period.
Main technical parameter
anchor chain diam | working load | over loading | loading support | nominal speed | Drum load | Nominal speed | Cable capacity | Mooring line load | ||||
(mm) | AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | m/min | Kn | m/min | m | Kn | |
17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 | 10 | 10 | Φ11x100 | 8 | |
19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 9 | 15 | 10 | Φ13x100 | 10 | |
20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 9 | 20 | 10 | Φ13x100 | 10 | |
22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 | 20 | 15 | Φ15x100 | 15 | |
24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 | 20 | 15 | Φ15x100 | 20 | |
26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 | 20 | 10 | Φ22x100 | 20 | |
28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 9 | 20 | 10 | Φ22x120 | 20 | |
30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 | 30 | 10 | Φ22x120 | 30 | |
32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 | 30 | 9 | Φ20x120 | 30 | |
34 | 49.1 | 54.9 | 73.3 | 82.4 | 294 | 421 | 9 | 40 | 9 | Φ20x120 | 30 | |
36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 | 30 | 12 | Φ20x120 | 30 | |
38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 | 40 | 15 | Φ22x150 | 40 | |
40 | 68 | 76 | 102 | 114 | 402 | 576 | 9 | 40 | 9 | Φ22x150 | 40 | |
42 | 75 | 83.8 | 112.5 | 125.7 | 442 | 632 | 9 | 40 | 15 | Φ22x150 | 50 | |
44 | 82.3 | 92 | 123.5 | 138 | 483 | 691 | 9 | 50 | 15 | Φ26x200 | 50 | |
46 | 89.9 | 100.5 | 134.9 | 150.8 | 526 | 753 | 9 | 50 | 18 | Φ26x200 | 50 | |
48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 816 | 9 | 60 | 10 | Φ26x200 | 50 | |
50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 | 80 | 15 | Φ26x200 | 50 |
