Deyuan Marine

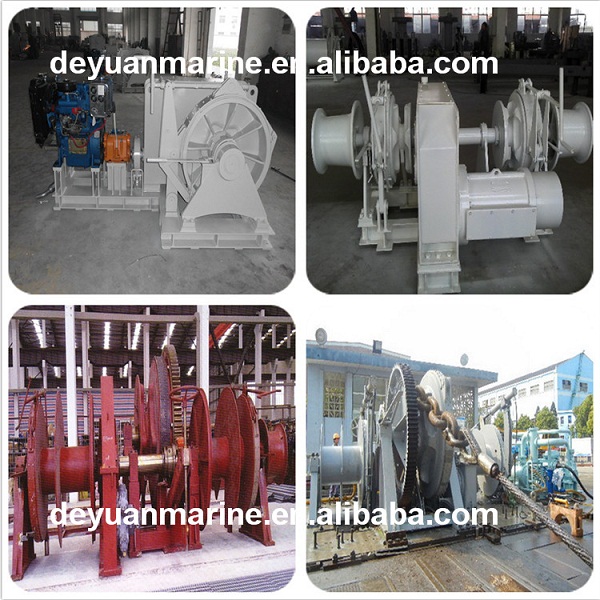

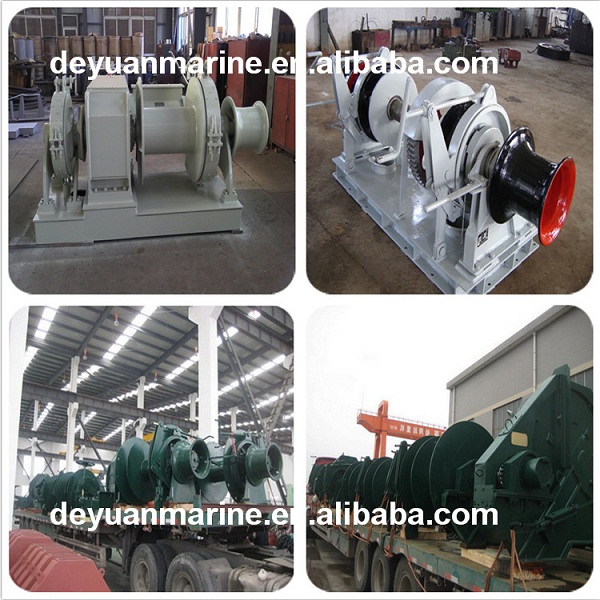

Electric Combined Anchor Windlass
Windlass mooring winch
Diesel windlass/windlass winch
China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine deck equipment, we can offer marine hydraulic steering gear, anchor windlass, marine mooring rope capstan, marine winches. Class certificate such as CCS, ABS, DNV, BV, RINA are available, our products are in good quality with very compectitive price. If you are interested, pls feel free to contact us at any time.
Electric mooring winch/electric capstan
Anchor Windlass Features:
Drive: Electric / hydraulic
2) Configuration: Single in vertical / horizontal arrangement / double Gypsies in horizontal
3) Chain size: 19 mm to 50 mm
4) Chain speed: Complying with ISO requirements
5) Clutch: Manually operated dog clutch
6) Brake: Manually and hydraulic operated band brake
| Name | Chain Dia (mm) | Working Load(KN) | Working Speed (m/min) | Mooring pull (KN) | Mooring Speed (m/min) | Drum Capacity (m) | Motor Power (kw) |
| Φ19/20.5/22 electric anchor Windlass and mooring winch | 19/20.5/22 | 15.3/17.9/20.5 | ≥12 | 20 | ≥12 | Φ15*120 | 8.5/3.5 |
| Φ24/26/28 electric anchor Windlass and mooring winch | 24/26/28 | 24.5/28.7/33.3 | ≥9 | 20 | ≥12 | Φ15*120 | 8.5/3.5 |
| Φ30 electric anchor Windlass and mooring winch | 30 | 38.3 | ≥9 | 30 | ≥12 | Φ18*150 | 11/11/7.5 |
| Φ32/34/36 electric anchor Windlass and mooring winch | 32/34/36 | 43.5/49.1/55.1 | ≥9 | 50 | ≥12 | Φ20.5*150 | 16/16/11 |
| Φ38/40/42 electric anchor Windlass and mooring winch | 38/40/42 | 61.4/68.0/75 | ≥9 | 50 | ≥12 | Φ20.5*150 | 22/22/16 |
| Φ44/46/48 electric anchor Windlass and mooring winch | 44/46/48 | 82.3/89.9/97.9 | ≥9 | 75 | ≥12 | Φ26*200 | 30/30/22 |
| Φ50/52/54 electric anchor Windlass and mooring winch | 50/52/54 | 106.3/114.9/123.9 | ≥9 | 75 | ≥15 | Φ26*200 | 30/30/22 |
| Φ56/58/60 electric anchor Windlass and mooring winch | 56/58/60 | 133.3/143.0/153 | ≥9 | 75 | ≥15 | Φ26*200 | 45/45/30 |
| Φ62/64 electric anchor Windlass and mooring winch | 62/64 | 163.4/174.1 | ≥9 | 100 | ≥15 | Φ30*200 | 45/45/30 |
| Φ66/68/70 electric anchor Windlass and mooring winch | 66/68/70 | 185.1/196.5 | ≥9 | 150 | ≥15 | Φ32.5*200 | 60/60/45 |
