Electric anchor capstan

Availability:
  • Deyuan Marine

Specifications

1.High quality
2.Fast delivery
3.Long life service
4.Competitive price
5.ABS, LR, BV, DNV,NK, CCS




DMe series Electric anchor capstan

1.High quality
2.Fast delivery
3.Long life service
4.Competitive price

5.ABS, LR, BV, DNV,NK, CCS



Type illustration

the first letter: D-electric Y-hydraulic S-manual C-diesel engine

the letter M:anchor winch

the third letter: Type A,B,E



Main technical parameter

Type anchor chain diam working load over loading loading support nominal speed mooring load

(mm) AM2 AM3 AM2 AM3 AM2 AM3 m/min Kn
DME-17.5 17.5 13 14.6 19.5 21.9 80 115 9 10
DME-19 19 15.3 17.2 23 25.8 95 135 9 15
DME-20 20 17.9 20 26.9 30 110 157 9 20
DME-22 22 20.6 23 30.9 34.5 126 180 9 20
DME-24 24 24.5 27.4 36.8 41.1 149 214 9 20
DME-26 26 28.7 32.1 43.1 48.2 175 250 9 20
DME-28 28 33.3 37.2 50 55.8 202 289 9 20
DME-30 30 38.3 42.8 57.5 64.2 231 330 9 30
DME-32 32 43.5 48.6 65.3 72.9 261 374 9 30
DME-34 34 49.1 54.9 73.3 82.4 294 421 9 40
DME-36 36 55.1 61.6 82.7 92.4 329 470 9 30
DME-38 38 61.4 68.9 92.1 103.4 365 522 9 40
DME-40 40 68 76 102 114 402 576 9 40

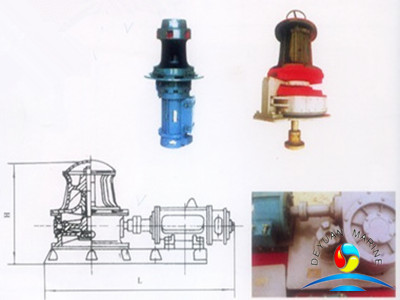

Marine Mooring Capstan
