Hot Sale Marine Double Gypsy Anchor Windlass

  • Deyuan Marine

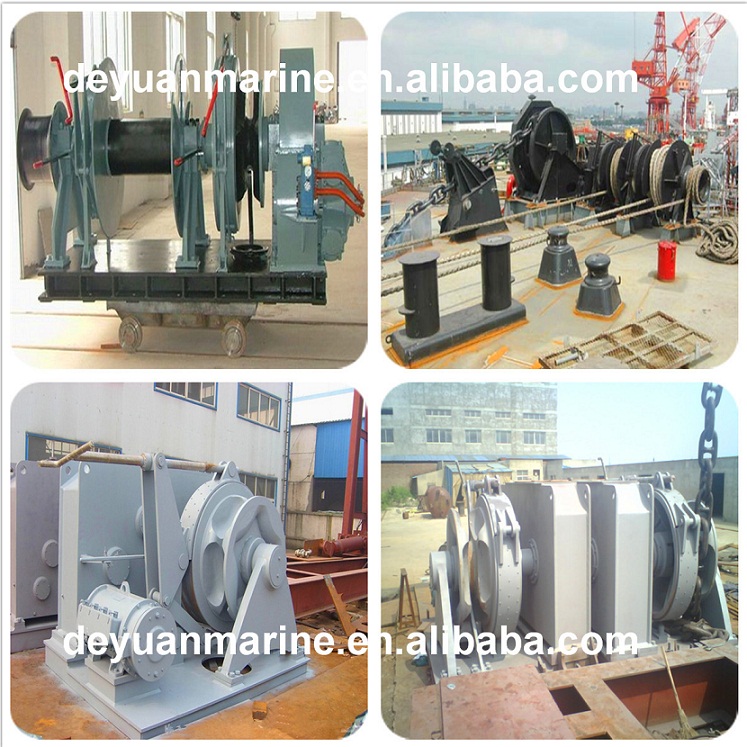

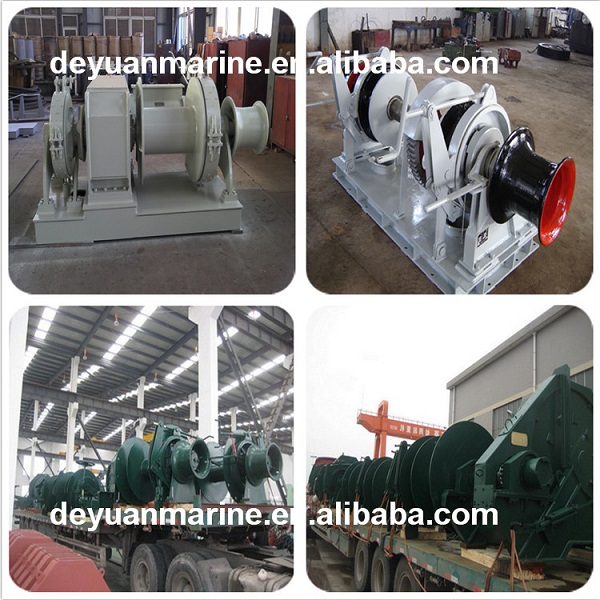

Marine Double Gypsy Anchor Windlass
Diesel anchor windlass

China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine deck equipment,

we can offer marine hydraulic steering gear, anchor windlass, marine mooring rope capstan,

marine winches. Class certificate such as CCS, ABS, DNV, BV, RINA are available,

our products are in good quality with very compectitive price. If you are interested,

 pls feel free to contact us at any time.

Anchor Windlass Features:
1) Drive: Electric / hydraulic
2) Configuration: Single in vertical / horizontal arrangement / double Gypsies in horizontal
3) Chain size: 19 mm to 50 mm
4) Chain speed: Complying with ISO requirements
5) Clutch: Manually operated dog clutch
6) Brake: Manually and hydraulic operated band brake


Name
Chain Dia(mm) Working
Load(KN)
Supporting load Working
Speed
(m/min)
Φ14/16/17.5
Electric anchor windlass
14/16/17.5 8.3/10.9/13 51/67/80 ≥12
Φ19/20/22.5
Electric anchor windlass
19/20/22.5 15.3/17.9/20.6 95/110/126 ≥12
Φ24/26
Electric anchor windlass
24/26 24.5/28.7 149/175 ≥9
Φ26/28
Electric anchor windlass
26/28 28.7/33.3 175/202 ≥9
Φ28/30/32
Electric anchor windlass
28/30/32 33.3/38.3/43.5 202/231/
261
≥9
Φ32/34/36
Electric anchor windlass
32/34/36 43.5/49.1/55.1 261/294/
329
≥9
Φ32/34/36/38
Electric anchor windlass
32/34/36/38 43.5/49.1/55.1/61.4 261/294/
329/365
≥9
Φ38/40/42
Electric anchor windlass
38/40/42 61.4/68.0/
75.0
365/402/442 ≥9
Φ42/44/46
Electric anchor windlass
42/44/46 75.0/82.3/
89.9
442/483/526 ≥9
Φ44/46/48
Electric anchor windlass
44/46/48 82.3/89.9/
97.9
483/526/
570
≥9
Φ50/52/54
Electric anchor windlass
44/46/48 106.3/114.9/123.9 617/664/713 ≥9
Φ56/58/60
Electric anchor windlass
56/58/60 133.3/143.0/153 761/816/870 ≥9
Φ62/64
Electric anchor windlass
62/64 163.4/174.1 925/982 ≥9
Φ66/68
Electric anchor windlass
66/68 185.1/196.5 1040/1098 ≥9
Φ70/73
Electric anchor windlass
66/68 208.3/226.5 1160/1254 ≥9
Φ76/78
Electric anchor windlass
66/68 245.5/258.6 1350/1416 ≥9


Hot Sale Marine Double Gypsy Anchor Windlass
Hot Sale Marine Double Gypsy Anchor Windlass
Hot Sale Marine Double Gypsy Anchor Windlass
