Hydraulic Electric Marine Windlass for Ship

  • Deyuan Marine

Specifications

1.Marine Windlass, Electric or Hydraulic.
2.Double gypsies
3.High Quality, Fast Delivery
4.ABS, LR, BV, DNV,NK, CCS




Hydraulic Electric Marine Windlass for ship

1)ABS certificate
2)40mm(U2) Marine Hydraulic Anchor windlass with double gypsies

Details 40mm(U2) Marine Hydraulic Anchor windlass with double gypsies for a ship (60.5m tug)
Gypsy size chain dia 40mm (U2)   (double gypsies & Warping ends)
Working load 100kN at 12m/min
Over Load 150kN
Brake Holding load  402kN Static
Brake Manual operated band type
Clutch Manual claw type, local control.
Warping ends' pull 40kN
Anchor hoisting norminal speed 12m/min
Anchoring depth Not more than 150m
Hydraulic motor Staffa or KYB
Certificate ABS
Hydraulic Power pack: 37KW/415V/3ph/50HZ)
Pump Kawasaki
Working pressure 14MPa

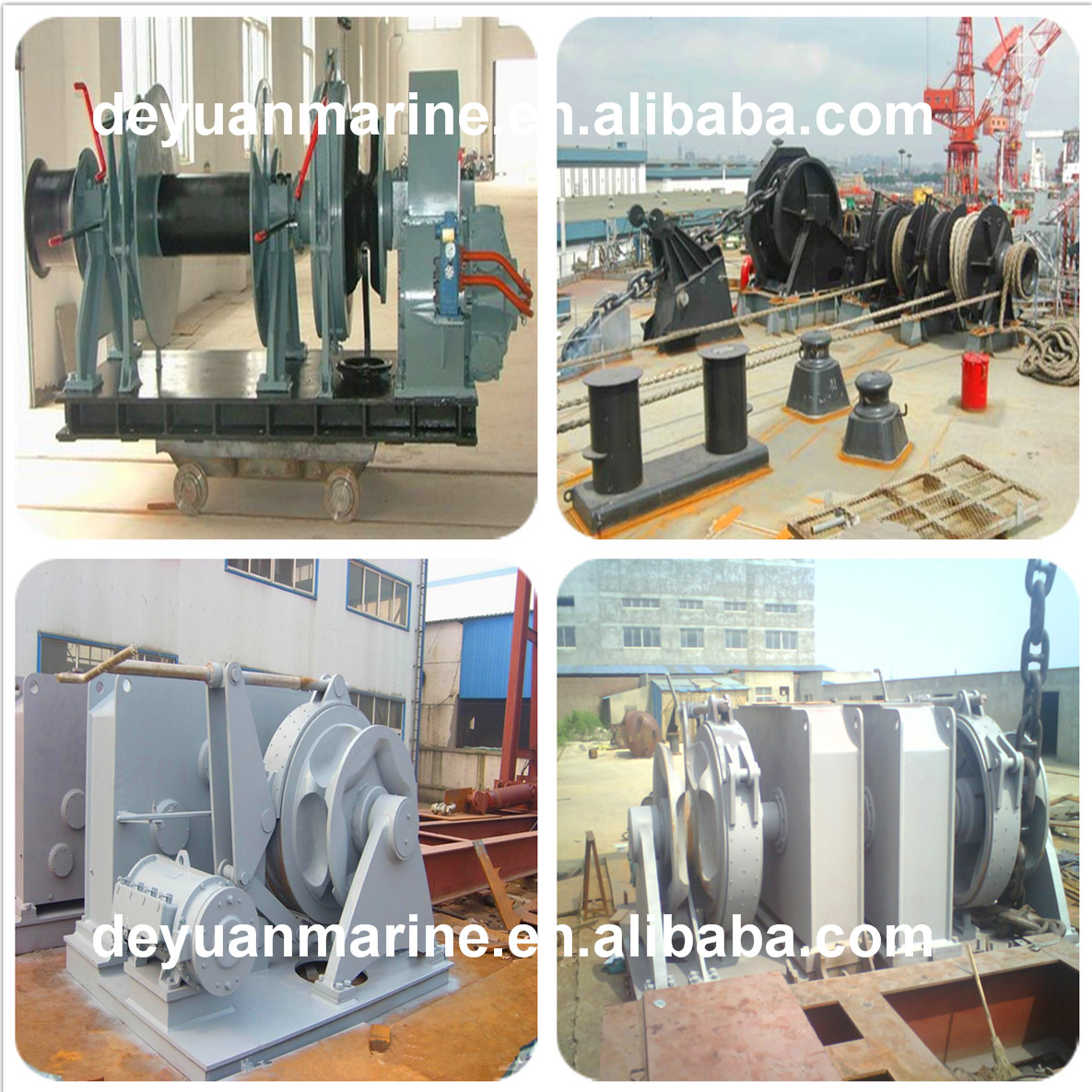

生产图 02
