Deyuan Marine
1.High quality
2.Fast delivery
3.Long life service
4.Competitive price
5.ABS, LR, BV, DNV,NK, CCS

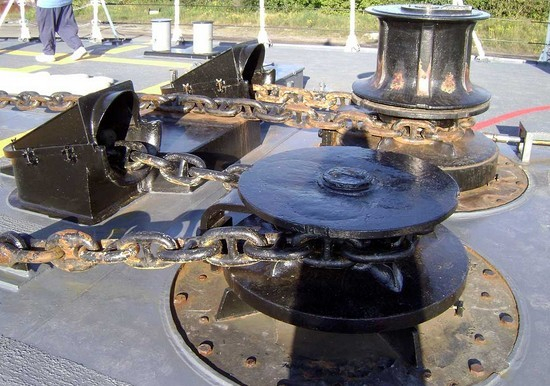

DMe series Electric anchor capstan
1.High quality
2.Fast delivery
3.Long life service
4.Competitive price
5.ABS, LR, BV, DNV,NK, CCS
Type illustration
the first letter: D-electric Y-hydraulic S-manual C-diesel engine
the letter M:anchor winch
the third letter: Type A,B,E
Main technical parameter
Type | anchor chain diam | working load | over loading | loading support | nominal speed | mooring load | |||
(mm) | AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | m/min | Kn | |
DYE-17.5 | 17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 | 10 |
DYE-19 | 19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 9 | 15 |
DYE-20 | 20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 9 | 20 |
DYE-22 | 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 | 20 |
DYE-24 | 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 | 20 |
DYE-26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 | 20 |
DYE-28 | 28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 9 | 20 |
DYE-30 | 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 | 30 |
DYE-32 | 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 | 30 |
DYE-34 | 34 | 49.1 | 54.9 | 73.3 | 82.4 | 294 | 421 | 9 | 40 |
DYE-36 | 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 | 30 |
DYE-38 | 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 | 40 |
DYE-40 | 40 | 68 | 76 | 102 | 114 | 402 | 576 | 9 | 40 |
