Inclined Single Chute Passage Marine Evacuation System

Inquire Add to Basket

  • DY050503

  • Life Vest

  • Approx .54kg

  • CCS, CE

  • Professional Equipment

  • Polyester Oxford Textile

  • DEYUAN MARINE

  • China

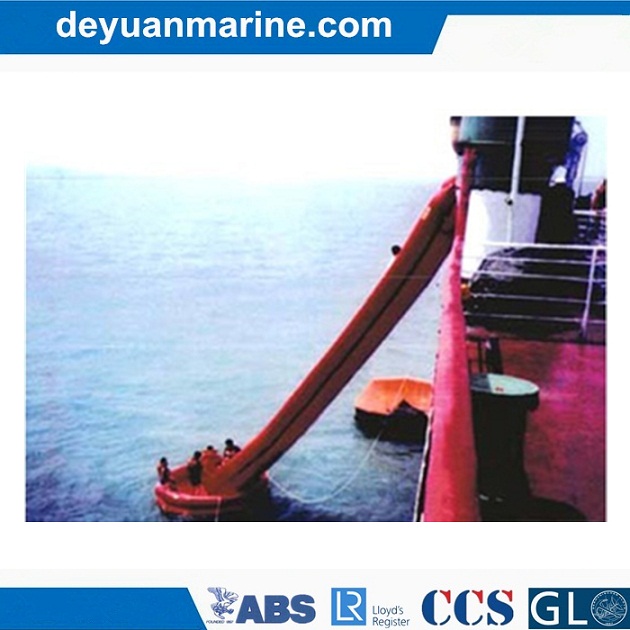

Inclined single chute passage marine evacuation system

The Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the system will be formed into the sea automatically.
Specification: 6, 7, 8, 9, 10, 11 and 12 meters.
Approval: CCS.

Model Maximum Stowage height
(meter)		 Maximum assigned
(person)		 Capacity on the platform
(person)		 Weight
(kg)		 Dimension of container
(mm)
MES-D6.0-315 6 315 63 1280 2000×1050×1800
MES-D7.0-315 7

1380 2000×1050×1800
MES-D8.0-315 8

1460 2000×1100×1800
MES-D9.0-315 9

1680 2200×1150×1850
MES-D10.0-315 10

1800 2200×1150×1900
MES-D11.0-315 11

1860 2240×1200×2000
MES-D12.0-315 12

1900 2300×1200×2
