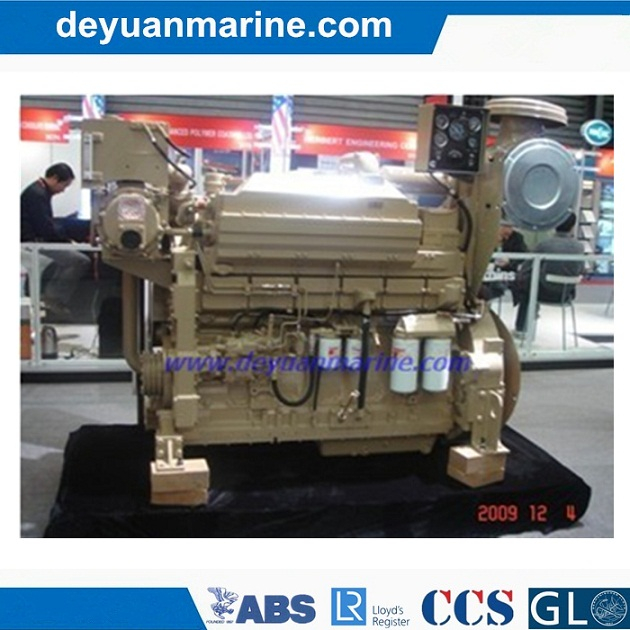

Kta19 Series 600HP Marine Cummins Engine

KT19 series 470HP Marine Cummins Engine
General Engine Data:
Engine Model: KT19-M(470HP marine cummins engine)
Use: Commercial propulsion
Displacement: 19.0L
Bore*stroke: 159*159mm
Fuel System: PT
Cylinders: 6
Advertised Power: 351kw(470hp)@1800rpm
Fuel system:
Fuel consumption: Litre/hr(GPH) 88.4(23.4)
Approximate Fuel Flow to Pump: Litre/hr(GPH) 265(70)
Fuel Rail Pressure Range: KPa(PSI)827(120)
Air system:
Intake Manifold Pressure: Mm Hg(in. Hg) 940(37)
Intake Air flow: Litre/sec(CFM) 497(1054)
Heat rejection to Ambient: Kw(BTU/min) 52(3000)
Minimun Ambient Temperature for cold start (No Aids): 4(40)
Exhaust system:
Exhaust Gas flow(after turbine): Litre/sec(CFM) 1337(2850)
Exhaust Gas Temperature(after turbine): Heat rejection to Engine Coolant: Kw(BTU/min) 342(19500)
Engine water flow: Litre/min(GPM) 648(171)
Raw water flow: Litre/min(GPM) 405(107)
Pressure Cap Rating w/heat exchanger: KPa(PSI) 103(15)
