Liferaft Landing Device Single Arm Davit for Life Boat And Life Raft

  • DEYUAN

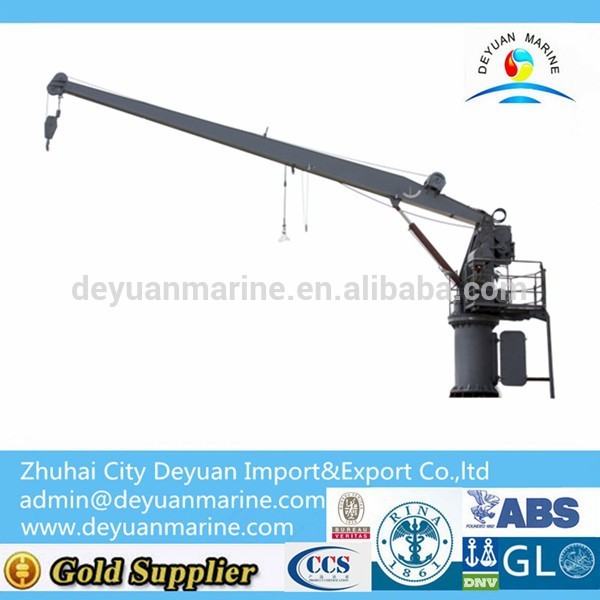

Liferaft Landing Device single arm davit for life boat and life raft

Hydraulic Slewing Crane

1.Hydraulic slewing crane &rescue boat liferaft landing device .

2.Working load:21~23KN .

3.Hoisting speed:≥18m/min.

4.Landing speed:40-60m/min.





Hydraulic Slewing Crane & Rescue Boat Liferaft Landing Device

This equipment uses hydraulic drive rotary type,by its own gravity of the boat to make it down to the water,which could make the

 boat slew to outboard in case of losing of the power supply.While lowering,the sailors in the boat could pull the remote ontrol steel rope,

through the pulley around the reel.To lift the winch hammer to control the boat/raft lowering or stop.This also could be operated by sailors

on the operation deck.The winch is use of motor-driven winch gear box and gear box with centrifugal speed and manual brake function delegated.

The device is designed and manufacturing according to the latest SOLAS standards and international standards.


type

Max.Working load

Hoisting load

Hoisting speed

Landing speed

Rope capacity of the reel

Max rotation radius

HD2-10

21KN

14KN



≥18m/min

40-60m/min

30m

4500mm

HD3-10

30KN

27KN

4500mm

HD3-10-1

23KN

14KN

7000mm

HD3-10-2

23KN

18KN

7000mm



Crane main technical data

Max.hoisting load

Rope capacity of the reel

Maximum rotation angle

Landing speed

Rotation radius

2T



30M



≤330°



≥15m/min



10000MM

3T

3T

3T
