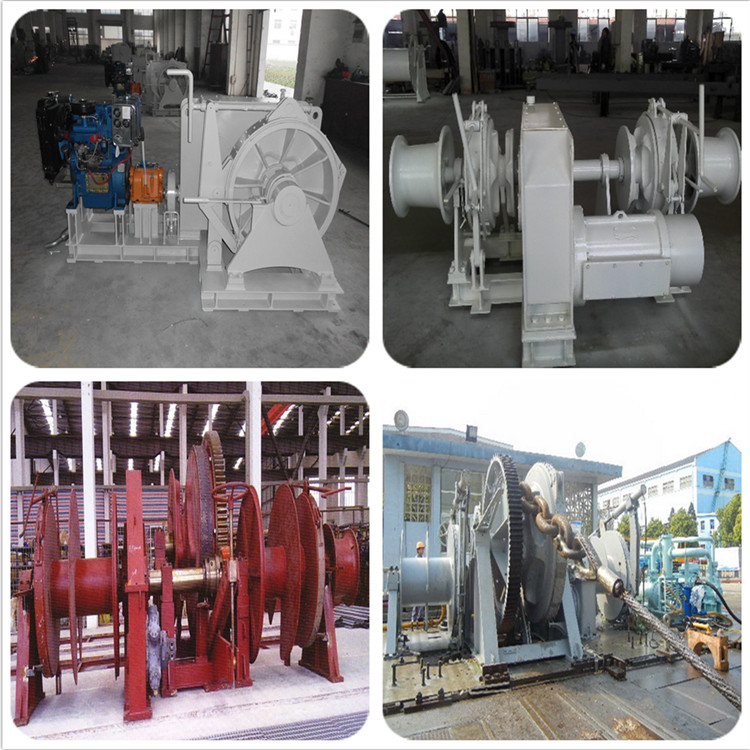

Marine Anchor Windlass/ Marine Hydraulic Windlass/ Marine Electric Windlass
Anchor Windlass Features:
Drive: Electric / hydraulic
1) Configuration: Single in vertical / horizontal arrangement / double Gypsies in horizontal
2) Chain size: 19 mm to 50 mm
3) Chain speed: Complying with ISO requirements
4) Clutch: Manually operated dog clutch
5) Brake: Manually and hydraulic operated band brake
| Name | Chain Dia (mm) | Working Load(KN) | Working Speed (m/min) | Mooring pull (KN) |
| Φ19/20.5/22 | 19/20.5/22 | 15.3/17.9/20.5 | ≥12 | 20 |
| Φ24/26/28 | 24/26/28 | 24.5/28.7/33.3 | ≥9 | 20 |
| Φ30 | 30 | 38.3 | ≥9 | 30 |
| Φ32/34/36 | 32/34/36 | 43.5/49.1/55.1 | ≥9 | 50 |
| Φ38/40/42 | 38/40/42 | 61.4/68.0/75 | ≥9 | 50 |
| Φ44/46/48 | 44/46/48 | 82.3/89.9/97.9 | ≥9 | 75 |
| Φ50/52/54 | 50/52/54 | 106.3/114.9/123.9 | ≥9 | 75 |
| Φ56/58/60 | 56/58/60 | 133.3/143.0/153 | ≥9 | 75 |
| Φ62/64 | 62/64 | 163.4/174.1 | ≥9 | 100 |
| Φ66/68/70 | 66/68/70 | 185.1/196.5 | ≥9 | 150 |
