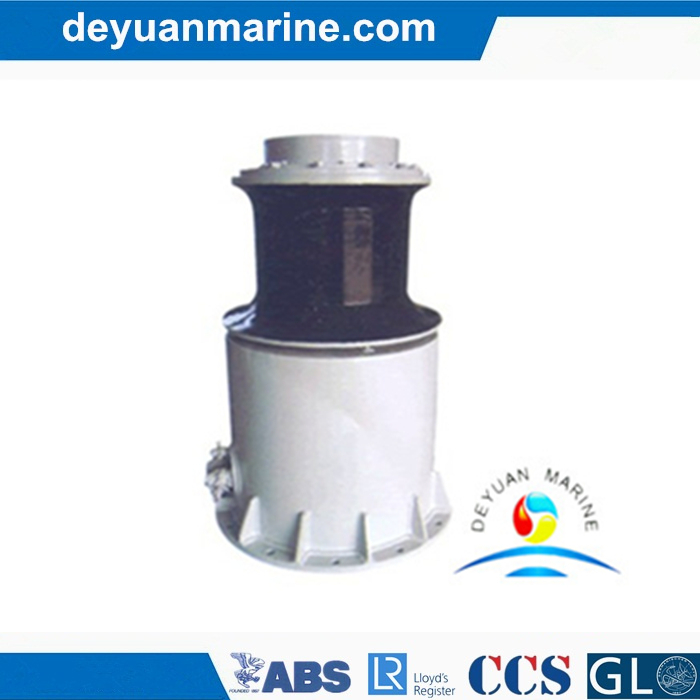

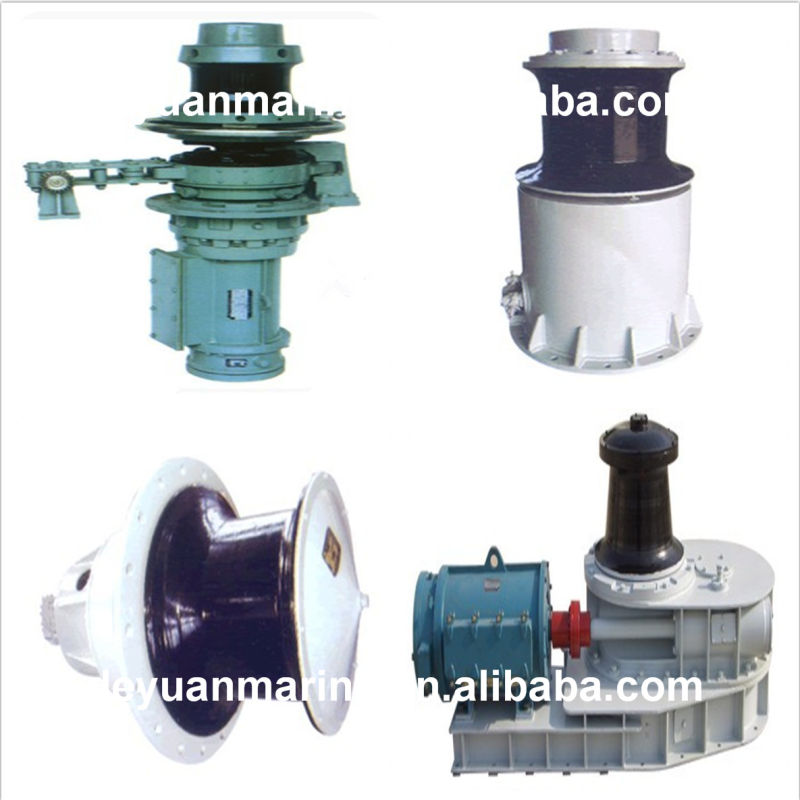

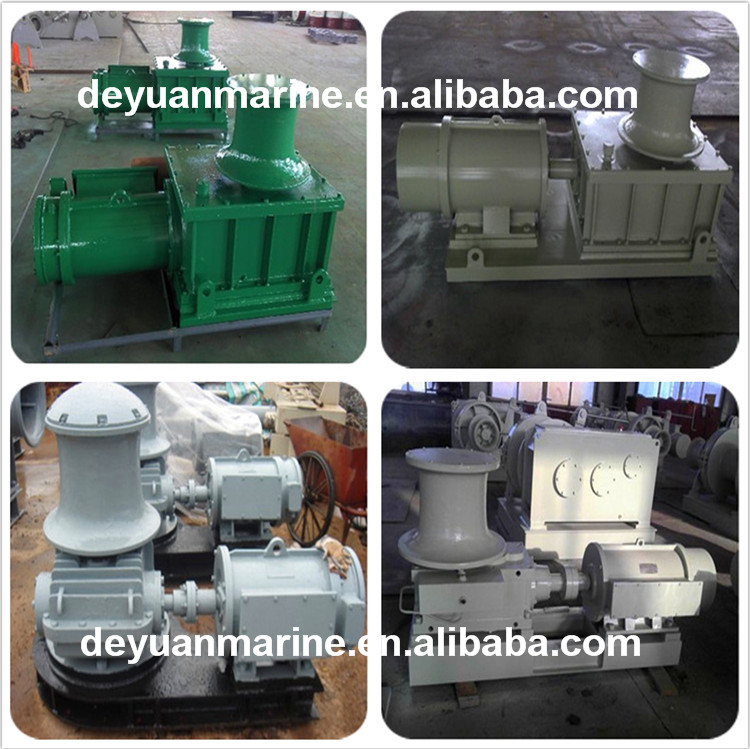

Marine Hydraulic Capstan/Marine Electric Capstan/Marine Capstan:
We, China Deyuan marine fitting Co., Ltd, can provide different types of electric warping hawser capstan and electric or hydraulic mooring capstan. Pls feel free to contact us for more details.
Marine Capstan Features:
1) Driven Mode: Electric or Hydraulic operated
2) Configuration: One warping head.
3) Rated Pull: From 5KN to 250KN
4) Nominal Speed: From 12m/min to 25m/min
5) Brake & Clutch: Manual or hydraulic
6) Control Option: Local &Remote control
| Name | Warping load (KN) | Warping speed (m/min) | Wire Dia (mm) | Motor power (kw) |
| 5KN | 5KN | ≥18 | Φ11 | 5.5 |
| 10KN | 10KN | ≥18 | Φ11 | 7.5 |
| 15KN | 15KN | ≥18 | Φ13 | 11 |
| 20KN | 20KN | ≥18 | Φ15 | 1.5 |
| 30KN | 30KN | ≥18 | Φ17.5 | 18.5 |
| 50KN | 50KN | ≥18 | Φ20.5 | 30 |
| 70KN | 70KN | ≥15 | Φ26 | 45 |
| 100KN | 100KN | ≥15 | Φ28 | 55 |
| 120KN | 120KN | ≥15 | Φ32.5 | 75 |
| 150KN | 120KN | ≥15 | Φ36.5 | 90 |
| 200KN | 200KN | ≥18 | 40 | 110 |
| 250KN | 250KN | ≥18 | Φ46 | 110 |
