5 roller fairlead:
1.Excellent quality.
2.Competitive price .
3.Durable, long lifetime.
4.Certificate: CCS BV ABS etc.
5 roller fairlead:

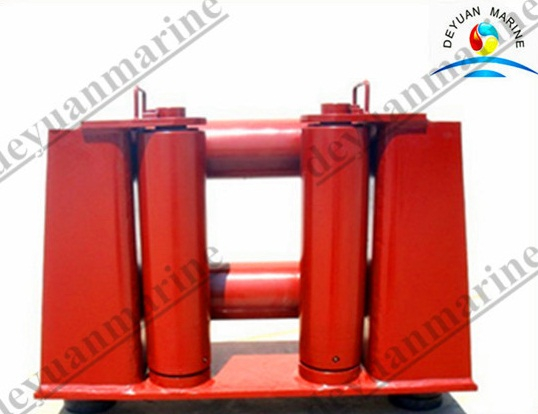

Marine mooring 5 roller fairlead :
Feature:
1.Excellent quality.
2.Competitive price .
3.Durable, long lifetime.
4.Certificate: CCS BV ABS etc.
Fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.
Provide CCS , BV , LR , BV etc Certificate
Customized service is available, Advanced equipment ,Strong consciousness in controlling quality
Material: Q235B,20# steel,H62 brass.
Surface: Blasting,Epoxy.
Machining facilities :CNC center, CNC lathes, ultrasonic wave cleaning, etc
Good wear and corrosion resistance
We can supply fairlead, roller according to JISF, DIN and GB standards. We can also make these products according to buyer's drawings.
Drawing:
Nominal dia | Frame | ||||||||||||||||
B | B1 | b | b1 | b2 | D | D1 | D2 | H | h | h1 | h2 | L | L1 | l | l1 | l2 | |
140 | 310 | 355 | 150 | 69 | 20 | 90 | 140 | 120 | 480 | 275 | 130 | 40 | 515 | 805 | 335 | 120 | 60 |
160 | 360 | 405 | 175 | 82 | 22 | 110 | 160 | 140 | 515 | 290 | 145 | 45 | 570 | 890 | 365 | 135 | 65 |
180 | 410 | 455 | 200 | 95 | 24 | 135 | 180 | 150 | 560 | 315 | 155 | 50 | 620 | 960 | 390 | 145 | 70 |
200 | 460 | 505 | 225 | 108 | 26 | 160 | 200 | 160 | 590 | 330 | 170 | 60 | 675 | 1049 | 420 | 160 | 80 |
250 | 565 | 610 | 280 | 133 | 30 | 200 | 250 | 200 | 715 | 415 | 195 | 75 | 825 | 1303 | 520 | 210 | 105 |
315 | 670 | 715 | 330 | 159 | 34 | 240 | 300 | 240 | 870 | 520 | 220 | 90 | 980 | 1562 | 620 | 260 | 130 |
