Steel fairlead:
1.Excellent quality.
2.Competitive price .
3.Durable, long lifetime.
4.Certificate: CCS BV ABS
Steel fairlead :

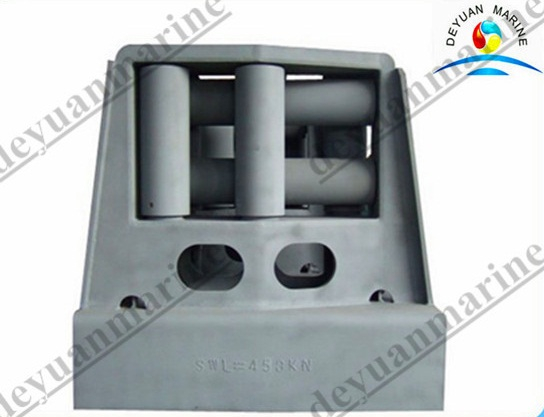

Marine steel saint lawrence fairlead:
Feature:
1.Excellent quality.
2.Competitive price .
3.Durable, long lifetime.
4.Provide CCS , BV , LR , BV etc Certificate.
Fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.
Customized service is available, Advanced equipment ,Strong consciousness in controlling quality.
Material: Q235B,20# steel,H62 brass.
Surface: Blasting,Epoxy.
Machining facilities :CNC center, CNC lathes, ultrasonic wave cleaning, etc
Good wear and corrosion resistance
We can supply fairlead, roller according to JISF, DIN and GB standards. We can also make these products according to buyer's drawings.
Drawing:
SAINT LAWRENCE FAIRLEAD CB3139-1983 | ||||||||
Product No. | Diameter of Roller | L | H | B | B1 | Weight | Diameter of Cable(mm) | |
(D1) | (mm) | (mm) | (mm) | (mm) | (KG) | Tightwire | Nylon Rope | |
SLF-001 | 140mm | 826 | 810 | 275 | 150 | 485 | 19.5 | 36 |
SLF-002 | 160mm | 920 | 937 | 340 | 200 | 752 | 22.5 | 4 |
SLF-003 | 190mm | 1002 | 1040 | 380 | 230 | 1080 | 26 | 45 |
SLF-004 | 200mm | 1077 | 1119 | 435 | 255 | 1426 | 32.5 | 70 |
