Marine Mooring Welded Inclined Bollard with competitive price
Marine Mooring Welded Inclined Bollard with competitive price
Marine Mooring Welded Inclined Bollard with competitive price

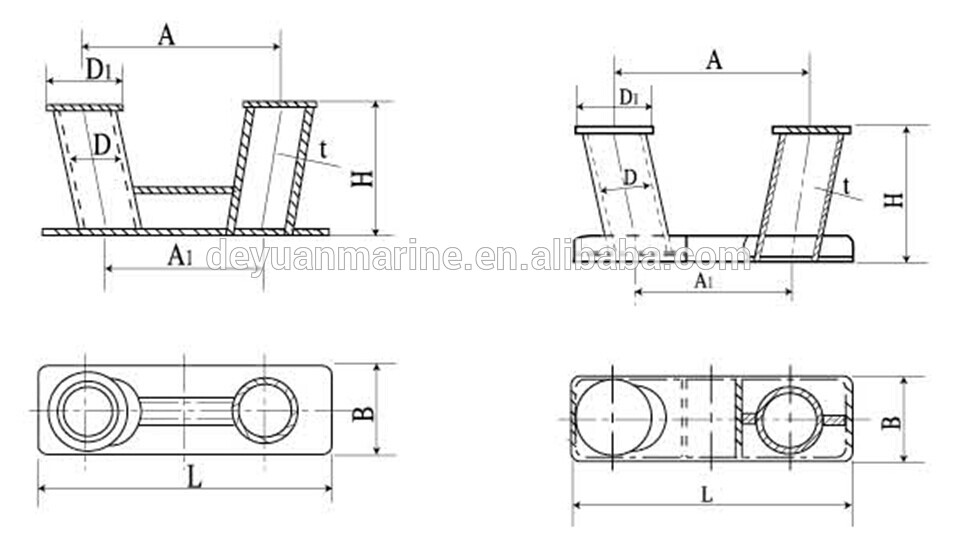

Type | Max diameter of wire rope(mm) | Max diameter of hemp rope(mm) | D | D1 | L | B | A | A1 | H | t | Weight (kg) |
DH | 8.7 | 75 | 50 | 65 | 310 | 100 | 205 | 166 | 170 | 6 | 5 |
11.5 | 90 | 75 | 90 | 430 | 125 | 296 | 238 | 215 | 7 | 11.5 | |
13.5 | 100 | 100 | 115 | 540 | 160 | 364 | 290 | 240 | 7 | 19.2 |
Type | Max diameter of wire rope(mm) | Max diameter of hemp rope(mm) | D | D1 | L | B | A | A1 | H | t | Weight (kg) |
SH | 15.5 | 125 | 125 | 140 | 660 | 170 | 458 | 380 | 295 | 8 | 25.2 |
17.5 | 150 | 150 | 165 | 750 | 200 | 525 | 432 | 348 | 8 | 33.3 | |
19.5 | 170 | 175 | 190 | 850 | 235 | 630 | 524 | 394 | 9 | 49.2 | |
22.5 | 200 | 200 | 220 | 950 | 270 | 676 | 564 | 436 | 10 | 68.8 | |
26 | 225 | 250 | 270 | 1150 | 340 | 765 | 640 | 540 | 12 | 95.7 |
Marine Mooring Welded Inclined Bollard with competitive price
Marine Mooring Welded Inclined Bollard with competitive price
Marine Mooring Welded Inclined Bollard with competitive price
Type | Max diameter of wire rope(mm) | Max diameter of hemp rope(mm) | D | D1 | L | B | A | A1 | H | t | Weight (kg) |
DH | 8.7 | 75 | 50 | 65 | 310 | 100 | 205 | 166 | 170 | 6 | 5 |
11.5 | 90 | 75 | 90 | 430 | 125 | 296 | 238 | 215 | 7 | 11.5 | |
13.5 | 100 | 100 | 115 | 540 | 160 | 364 | 290 | 240 | 7 | 19.2 |
Type | Max diameter of wire rope(mm) | Max diameter of hemp rope(mm) | D | D1 | L | B | A | A1 | H | t | Weight (kg) |
SH | 15.5 | 125 | 125 | 140 | 660 | 170 | 458 | 380 | 295 | 8 | 25.2 |
17.5 | 150 | 150 | 165 | 750 | 200 | 525 | 432 | 348 | 8 | 33.3 | |
19.5 | 170 | 175 | 190 | 850 | 235 | 630 | 524 | 394 | 9 | 49.2 | |
22.5 | 200 | 200 | 220 | 950 | 270 | 676 | 564 | 436 | 10 | 68.8 | |
26 | 225 | 250 | 270 | 1150 | 340 | 765 | 640 | 540 | 12 | 95.7 |
