Marine Professional Evacuation System with Good Quality

Inquire Add to Basket

  • DY050501

  • DEYUAN MARINE

  • China

  • Approx .54kg

  • CCS, CE

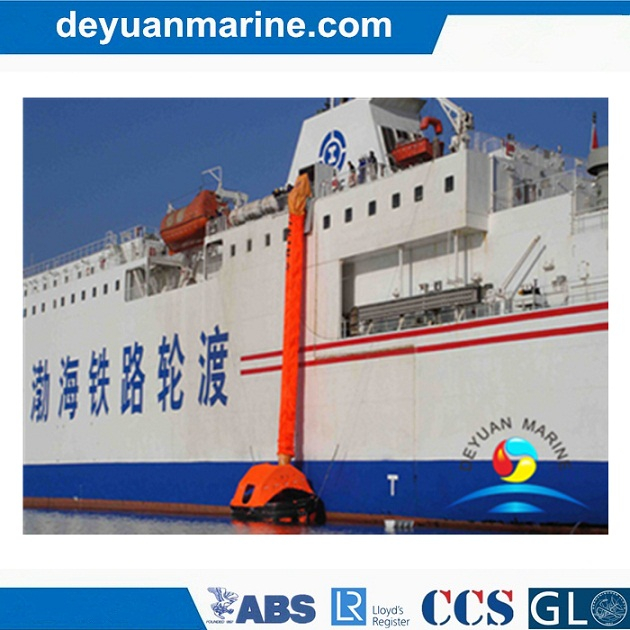

Inclined Single Chute Passage Marine Evacuation System
The Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the system will be formed into the sea automatically.
Specification: 6,7,8,9,10,11 and 12 meters.
Approval: CCS.
Approval standard
1.MSC.81(70)Revised Recommendation on Testing of Life-saving Appliances
2.MSC.48(66)International Life-saving Appliance Code
Model Maximum Stowage height
(meter)		 Maximum assigned
(person)		 Capacity on the platform
(person)		 Weight
(kg)		 Dimension of container
(mm)
MES-D6.0-315 6 315 63 1280 2000×1050×1800
MES-D7.0-315 7 1380 2000×1050×1800
MES-D8.0-315 8 1460 2000×1100×1800
MES-D9.0-315 9 1680 2200×1150×1850
MES-D10.0-315 10 1800 2200×1150×1900
MES-D11.0-315 11 1860 2240×1200×2000
MES-D12.0-315 12 1900 2300×1200×2
