Marine Single Arm Rescue Boat Davit

  • DEYUAN

Marine Single Arm Rescue Boat Davit

Marine Single Arm Rescue Boat Davit

*Davit model:    23KN SINGLE ARM SLEWING DAVIT

* Max. working load: 23KN

*Hoisting load:14KN

*Hoisting speed of rescue boat :   ≥18m/min

*Lowering speed of boat(designed): 40~60 m/min

Marine Single Arm Rescue Boat Davit

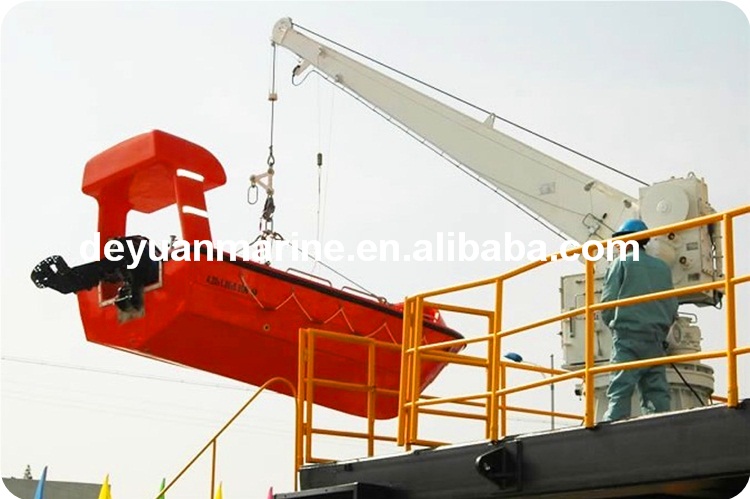

The davit is a single arm slewing type davit and it lowers the boat on the water by the help of its own weight.

The davit is a hydraulic slewing type davit and accumulator or manual pump driven in case of power failure would slew it

Scope of our supply:

*1 set :23KN SINGLE ARM SLEWING

*1 set :Starting panel(IP56)

*1 set :Push button (use for winch)

*1 set :Operating plate

*3 set :Limit switch (be fixed in winch already)



The single arm rescue boat/raft lowering device and crane main technical specifications

type

Max working load

Hoisting load

Hoisting speed

Landing speed

Rope capacity of the reel

Rotation radius

SARC21

21KN

14KN

≥18m/min

40-60m/min

30m

3600-4500mm

SA23-1

23KN

14KN

3600-5400mm

SA23-2

23KN

18KN

3600-5000mm



 Crane main technical data

Max.hoisting load

Rope capacity of the reel

Maximum rotation angle

Landing speed

Rotation radius

30KN

30M

≤330°

11-15m/min

4100-5000mm

15KN

4100-7300mm

30KN

4100-5500mm
