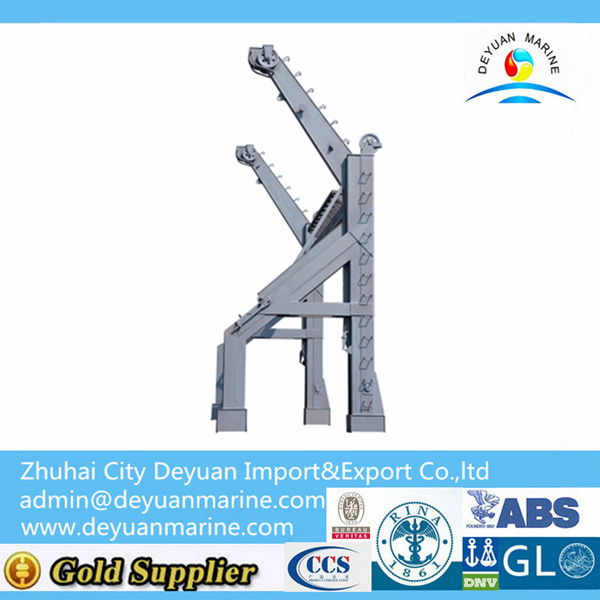

Inverted arm gravity davit

Availability:
  • DEYUAN
Inverted arm gravity davit :

This device could launch the boat by its own gravity to the surface of water, also, which could pour down the boat outboard while

 it is loss of electric power; while Launching, the passengers could pull the remote control cable in the boat to

launch or stop the life / rescue boat or raft. As well, the crews can operate it on the deck.

This device meets the SOLAS 1974, the international life saving equipment rules LSA and IMO,

MSC81 (70) and other regulatory requirements.

Model Max. Safety working load(KN) Hoisting load(KN) Max width(mm) Max width(mm) Max width(kg)
25KN 25 12.5 2590 5100 2820
40KN 40 17 2800 5200 3492
50KN 50 30.5 2800 5200 4300
LB50-1 50 35 2550 6500 3200
70KN 70 35 3150 6200 4730
LB85-1 85 38 3430 6600 5025
120KN 120 60 4150 8200 6500
LB170-1 170 70 4430 9090 9438

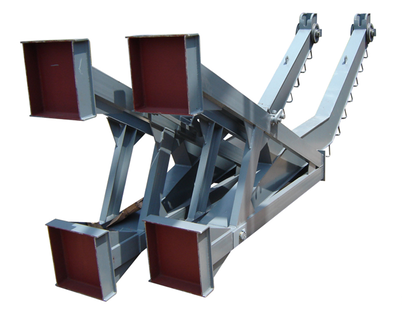

Photo:
tupian2
