DEYUAN

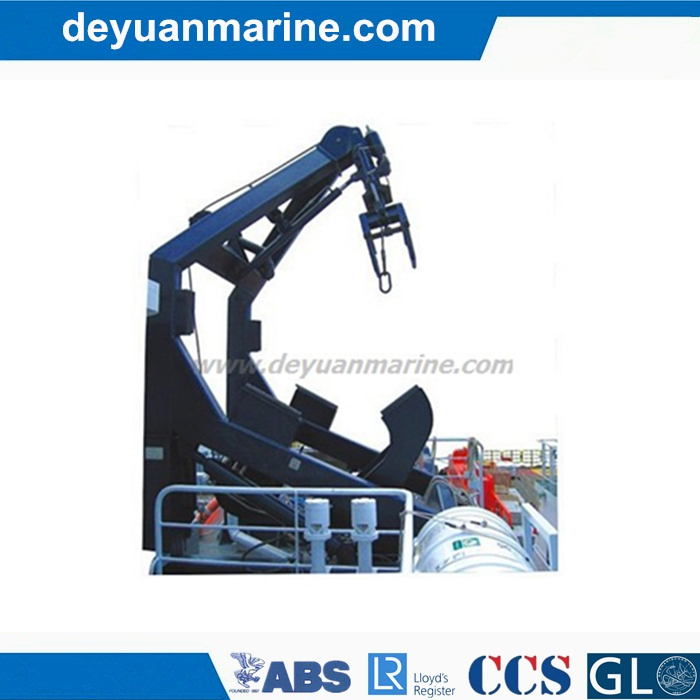

Free fall life boat davit launching device
Overview:
This device can make lifeboat freely launch into water in an emergency or under the circumstances of trim20° And list to 10° .
Which meets the requirements of international marine safety of life at sea1974, rules of international life saving equipments
(LSA) and IMO, MSC. 81(70) and other regulations.
Specifications:
| type | Max working load | Max hoisting load | Rope capacity of the reel | Hoisting speed | Specification of the wire rope |
| F55 | 55KN | 42KN | 50M | >3m/min | φ20-18*19-1770 |
| F65 | 65KN | 42KN | 50M | >3m/min | φ20-18*19-1770 |
| F90 | 90KN | 55KN | 70M | >3m/min | φ24-18*19-1770 |
Free fall life boat davit launching device
Overview:
This device can make lifeboat freely launch into water in an emergency or under the circumstances of trim20° And list to 10° .
Which meets the requirements of international marine safety of life at sea1974, rules of international life saving equipments
(LSA) and IMO, MSC. 81(70) and other regulations.
Specifications:
| type | Max working load | Max hoisting load | Rope capacity of the reel | Hoisting speed | Specification of the wire rope |
| F55 | 55KN | 42KN | 50M | >3m/min | φ20-18*19-1770 |
| F65 | 65KN | 42KN | 50M | >3m/min | φ20-18*19-1770 |
| F90 | 90KN | 55KN | 70M | >3m/min | φ24-18*19-1770 |
