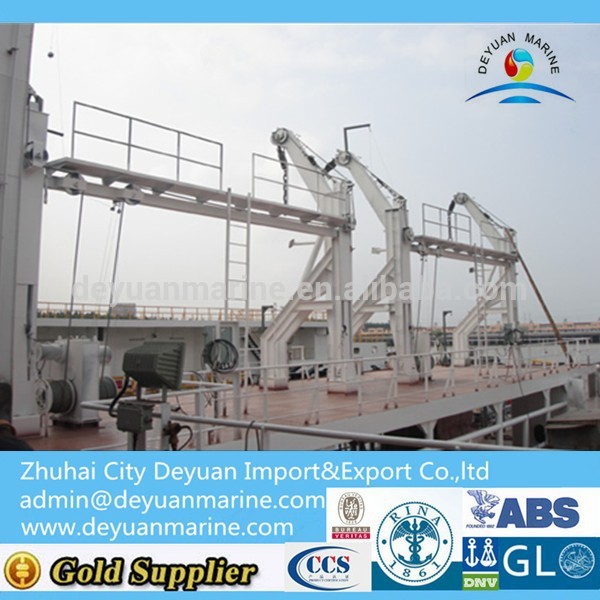

Gravity Luffing Arm Davit For Totally Enclosed Lifeboat
Gravity Luffing Arm Davit For Totally Enclosed Lifeboat
The davit is manufactured and test under the approval of Classification Society KR in compliance with the requirements
of the MSC.47 (66)-Amendments to SOLAS 1974 & MSC.48 (66)& MSC.272(85) -LSA. 1-2 The davit to be designed for
embarkation when the boat in stowed position.
The boat may be lowered without stopping in a continuous movement at a minimum time.
1:Product standard:MSC,MSC.81(70),MSC.226(82).
2:Certificate:CCS,EC,BV,ABS,RINA.
3:Type:Gravity Luffing Arm davit.
4:Davit load: Max. 52 KN.
5:Winch load: 42KN.
Type | Max working load(KN) | Hoisting load (KN) | Max width (mm) | Max height (mm) | Total weight (kg) |
25KN | 25 | 14.5 | 2590 | 5100 | 2820 |
40KN | 40 | 17 | 2800 | 5200 | 3492 |
50KN | 50 | 30.5 | 2800 | 5200 | 4300 |
LB50-1 | 50 | 35 | 2550 | 6500 | 3200 |
70KN | 70 | 35 | 3150 | 6200 | 4730 |
LB85-1 | 85 | 38 | 3430 | 6600 | 5025 |
120KN | 120 | 60 | 4150 | 8200 | 6500 |
LB170-1 | 170 | 70 | 4430 | 9090 | 9438 |
