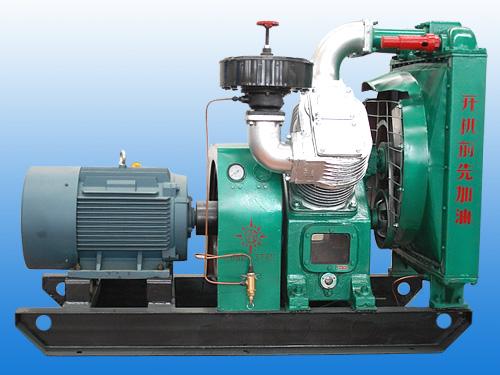

Medium Pressure Marine Air Compressor :
Medium Pressure Water Cooling Marine Air Compressor :
Product Description:
Vertical type.
Water cooling.
Second stage compression.
Piston type.
Suitable for Air bottle equal or smaller than 1.0 m3 to 3.0 m3.
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Overall size |
| m3/h | Mpa | r/min | KW | Kg | mm | ||
| HC-65A | Vertical type. Water cooling. Second stage compression. Piston type. | 69 | 3 | 750 | 18.5 | 700 | 1430x900x1260 |
| 82 (440V) | 900 | 22 | |||||
| 90 | 960 | 22 | |||||
| HC-265A | 137 | 750 | 37 | 1400 | 1870x1000x1180 | ||
| 170 (440V) | 900 | 45 | |||||
| 190 | 960 | 45 |
