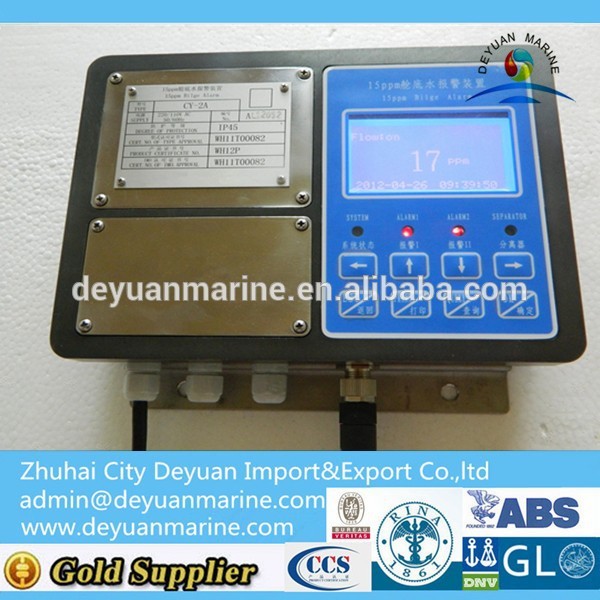

OCM-15 15PPM Bilge Alarm For Oily Water Separator

Availability:

Specifications

15ppm Bilge Alarm For Oily Water Separator Price
1.High quality.
2.Competitive price.
3.Ample supply and prompt delivery.

15ppm Bilge Alarm For Oily Water Separator Price

 1) Measuring range: 0-30ppm (display range 0-80ppm).
  2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard).
  3) Display type : LED digital tube.
  4) 15ppm bilge water Alarm Alarm indication: 4 red LED.
  5) 2-way alarm relay.
  6) Rated capacity of relay contact 250VAC 3A (non-emotional).

  7)Model:15ppm bilge alarm.

15ppm Bilge Water Alarm Main performance indicators:
  1) Measuring range: 0-30ppm (display range 0-80ppm)
  2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard)
  3) Display type : LED digital tube
  4) 15ppm bilge water Alarm Alarm indication: 4 red LED
  5) 2-way alarm relay
  6) Rated capacity of relay contact 250VAC 3A (non-emotional)
  7) 15ppm bilge water Alarm Response time ≤ 5 seconds
  8) Output signal 4-20mA
  9) Environment temperature 0 °C - 55 °C
  10) bilge water Alarm Relative humidity≤ 93%
  11) Sample liquid temperature 1 - 55 °C
  12) Sample liquid pressure 0.1-0.6MPa
  13) Sample liquid flow of 0.1-4L / min
  14) Protection class IP55
  15) Main power supply 220/110VAC 50Hz/60Hz
  16) Power Consumption ≤ 20VA
  17) Overall dimension 400mm × 300mm × 160mm
  18) Meet the standard IMO. Res. MEPC. 107 (49) resolution
