Oil Discharge Monitoring and Control System
The MARPOL 73/78 Convention specifies that oil tankers with a gross tonnage of 150 tons and above shall be equipped with an Oil Discharge Monitoring and Control System (ODMS). This system must be arranged to monitor all discharges overboard of oil contaminated water from the ballast water.

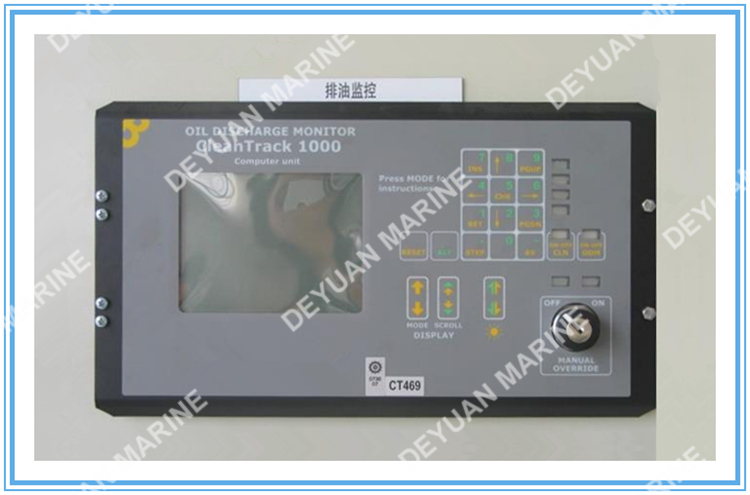

The CleanTrack 1000 Oil Discharge Monitoring and Control System is approved and certified in accordance with IMO Res. MEPC 108(49). The approval covers the ability of the system to monitor different kinds of crude oils, "black / white substances", as well as a number of identified chemicals allowed to be carried in oil tanker under the criteria for "oil-like substances".
The CleanTrack 1000 system is approved by the Marine Administration as specified in the IMO regulations. In addition to this, the system is ype approved by the major classicifaction societies. It ha also the "MED"-Marine Directive approval, for equipment to be installed onboard ships, in accordance with the European council Directive 96/98/EC.
China Deyuan Marine Fitting Co.ltd is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.
Oil Discharge Monitoring and Control System features:
General
All monitors in our range are inspected and tested to I.M.O. requirements at our factories prior to delivery.
In normal use the units should operate correctly and without fault over a long period of time requiring only small
amounts of maintenance to be carried out as outlined in the instruction manuals.
Service Exchange Units
In the event of a monitor malfunction due to electrical or electronic component failure it is our recommendation
that a service exchange unit be ordered.
This procedure is by far the easiest and most cost effective way of ensuring your request.
Component Replacement/Repair
When replacing or repairing electronic components (except fuses) please note that due to varying component
performance characteristics it may be necessary to re-adjust or calibrate the monitor.
Failure to carry out the correct procedure could result in the monitor over or under reading which in turn could
lead to oil pollution and the consequences that follow.
In order to avoid this potential problem we can only advise that a service exchange unit be supplied.
IMPORTANT NOTES
a) This equipment must be installed and operated in strict accordance with the instructions contained in this
manual. Failure to do so will impair the protection provided.
b) Installation and servicing must be undertaken by a competent and suitable skilled person.
c) The equipment must be connected to the ground according relevant requirements.
d) The unit must be isolated from the electrical supply before any maintenance of the equipment is attempted.
e) All National or local codes of practice or regulations must be observed and, where applicable, are deemed to
take precedence over any directive or information contained in this manual.
f) In case of freezing conditions the measuring cell should be emptied complete.
1.0 INTRODUCTION
The OCM-15 type bilge water alarm device has been designed specifically for use in continuous monitoring of
oil-in-bilge water, 15 ppm alarm and control of discharge, detection, memory and enquiry of alarm status. It is
applicable to detect boiler condensate water.And it applies to oil and chemical industries as well.
The OCM-15 type bilge water alarm device use the technology of near infrared measurement, which can display
the detected result in real time. The unit is supplied with 2 works-adjusted alarms. The set point (15ppm factory
set) could be adjusted at any moment through the panel. If an alarm set point is exceed, the alarms are visible at
the front panel and the appropriate relays are switched, that can be achieved the movement control of overrun
closedown or the treatment of overrun recycle, and the memory and enquiry of alarm record. Furthermore, a 4 - 20
mA(equal to 0 - 15ppm) effective signal output is available for driving a recorder or external meter.
The certificate of type approval test has been obtained through comprehensive tests. This device is in accordance
with the IMO-Resolution MEPC.107 (49).
More types of marine equipments with competitive price can be offered, please contact us for more details.
