DEYUAN

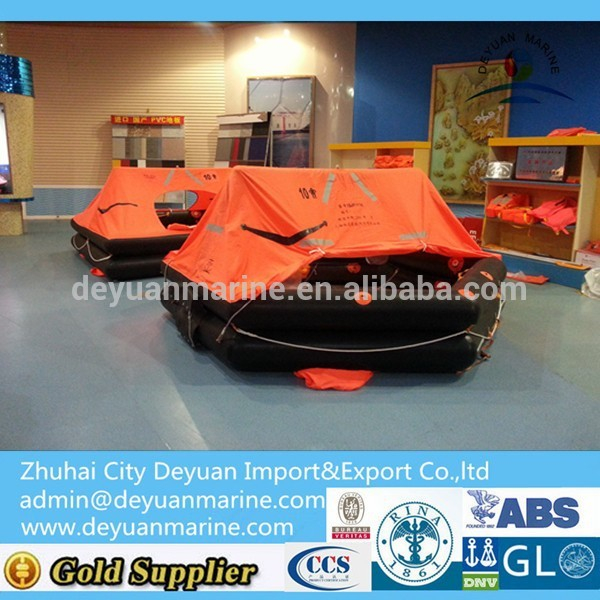

Throw Over Board Liferaft
Throw Over Board Liferaft
Type: 10\12.Man Throw Over Board Liferaft.
Suitable for installing in the vessels sailing on international voyages.
It meets the China MSA-“ Regulations for the Statutory Surveys of Ships and offshore Installations—Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages”2004,and it′s 2008 Amendments,Part4,
Ch.3.and SOLAS(74/96),LSA,MSC.81(70), MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002).
Max. Storage Height: 18~36m.
Equipment Outfit: SOLAS A \B PACK.
Certificates:CCS,GL.
Equipment Pack Contains:
• 2 Red Hand Flares (SOLAS)
• Bailer
• Topping-up Pump
• Signal Mirror
• Water Tight Flashlight
• Extra Flashlight Batteries
• Floating Knife
• Rescue Throwing Quoit
• Sponges
• Paddles
• Seasick Tablets
• Repair Kit
• Sea Anchor
• First Aid Kit
• Instruction Handbook
• Whistle
Type | 10Man | 12Man | ||
Shape | Regular octagon
| |||
Capacity (Persons) | 10 | 12 | ||
Dimension(L×W×H) | 2694×2694×1400 | 2924×2924×1500 | ||
Cylinder | 6L×1 | 7L×1 | ||

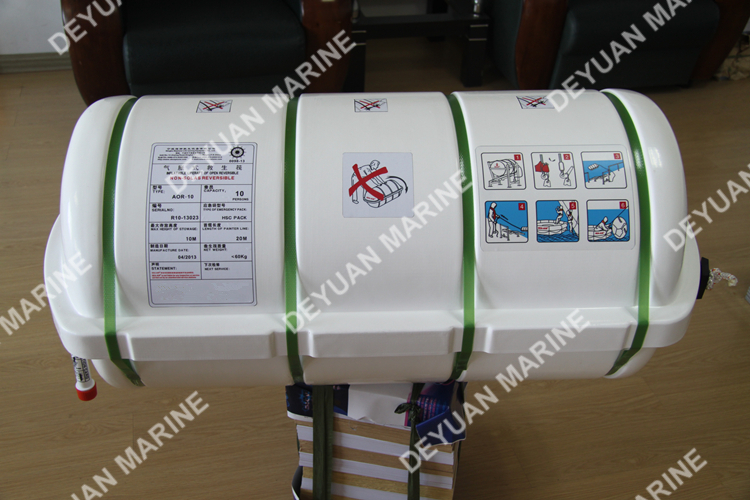

Container dimension (mm) | SOLAS A PACK (a×b) | 1260×645 | ||
SOLAS B PACK (a×b) | 1090×615 | |||
Packaging dimension (mm) | SOLAS A PACK (c×d×e) | 1330×715×700 | ||
SOLAS B PACK (c×d×e) | 1100×635×560 | |||
Required bollard pull (KN) | For 2knot speed | 0.40 | 0.45 | |
For 3knot speed | 0.90 | 0.95 | ||
Weight (kg) | ≤102 | ≤120 |
