QXC-type oil-fired horizontal thermal fluid heater with good price
QXC-type oil-fired horizontal thermal fluid heater with good price

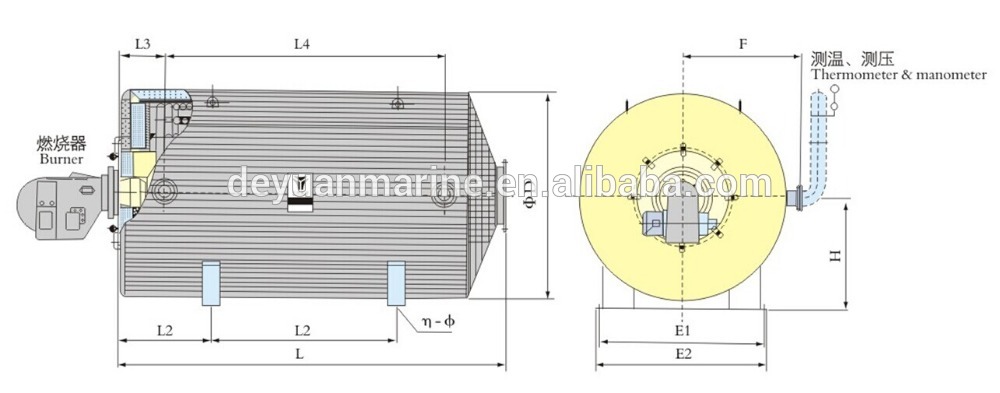

type and specs | heating power(kw) | thermal fluid circulation(M3/h) | working pressure(Mpa) | dimensions(mm) | weight(kg) | ||||||||||
L | L1 | L2 | L3 | L4 | D | E1 | E2 | H | F | ∩- | |||||
QXC-50W | 600 | 38-75 | 0.7 | 2780 | 1500 | 500 | 500 | 1500 | 1682 | 1300 | 1360 | 948 | 900 | 4-22 | 3256 |
QXC-75W | 900 | 45-85 | 0.7 | 3380 | 2100 | 500 | 500 | 2100 | 1628 | 1300 | 1360 | 1298 | 1050 | 4-22 | 4250 |
QXC-100W | 1200 | 80-100 | 0.7 | 3240 | 2000 | 500 | 500 | 2000 | 1828 | 1480 | 1540 | 1008 | 1100 | 4-22 | 5140 |
QXC-125W | 1500 | 80-100 | 0.7 | 3540 | 2200 | 500 | 500 | 2200 | 1828 | 1480 | 1540 | 1008 | 1100 | 4-22 | 5600 |
QXC-150W | 1800 | 90-120 | 0.7 | 3840 | 2500 | 500 | 500 | 2500 | 1828 | 1480 | 1540 | 1358 | 1150 | 4-22 | 6080 |
QXC-175W | 2000 | 100-140 | 0.7 | 3662 | 2500 | 500 | 500 | 2800 | 2228 | 1760 | 1818 | 1212 | 1450 | 4-22 | 7506 |
QXC-200W | 2400 | 120-160 | 0.7 | 4130 | 2800 | 400 | 400 | 2500 | 2228 | 1760 | 1818 | 1212 | 1450 | 4-22 | 7740 |
QXC-250W | 3000 | 140-180 | 0.7 | 5000 | 3340 | 700 | 700 | 3340 | 2228 | 1760 | 1820 | 1212 | 1260 | 4-22 | 10200 |
QXC-300W | 3500 | 180-220 | 0.7 | 5200 | 3300 | 800 | 800 | 3300 | 2328 | 1760 | 1820 | 1230 | 1300 | 4-22 | 12000 |
QXC-350W | 4200 | 200-240 | 0.7 | 5660 | 3700 | 900 | 900 | 3500 | 2536 | 1760 | 1960 | 1430 | 1360 | 4-22 | 14100 |
QXC-500W | 6000 | 250-300 | 0.7 | 6655 | 4300 | 1000 | 1000 | 4300 | 2836 | 2300 | 2400 | 1655 | 1540 | 4-22 | 17900 |
Note:
1.Dimensions and orientation of boiler are adapted to customer's need.
2.The data in the lable is only for reference and subject to be change without notice.
3.The types in the lable are a part of our products. Please contact us if you need other types.
