Marine composite boiler with good quality



Inquire Add to Basket

Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Structure:
Water Tube
Pressure:
Low Pressure
Style:
Three trough
Fuel:
Oil-fired
Brand Name:
DEYUAN MARINE
Model Number:
Marine composite boiler
Dimension(L*W*H):
NO
Weight:
According to models
Certification:
ISO9001:2008;BV, ISO9001:2008;BV
After-sales Service Provided:
Overseas third-party support available
Packaging Details:
wooden case
Delivery Detail:
45 days

Product Description

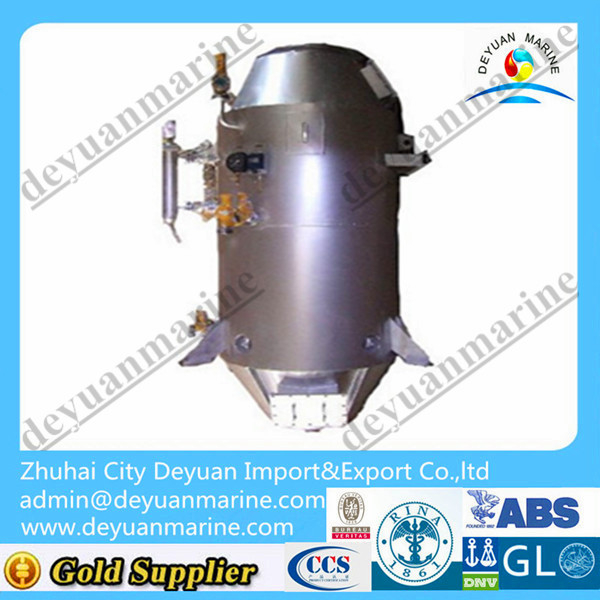

Marine composite boiler with good quality

1.Type:marine combined oil-fired exhaust-gas boiler.

2.has a natural circulation system with a boiler shell.

3.steam capacity of the Oil-fired part is 0.3t/h~4t/h.

Combined oil-fired exhaust-gas boiler

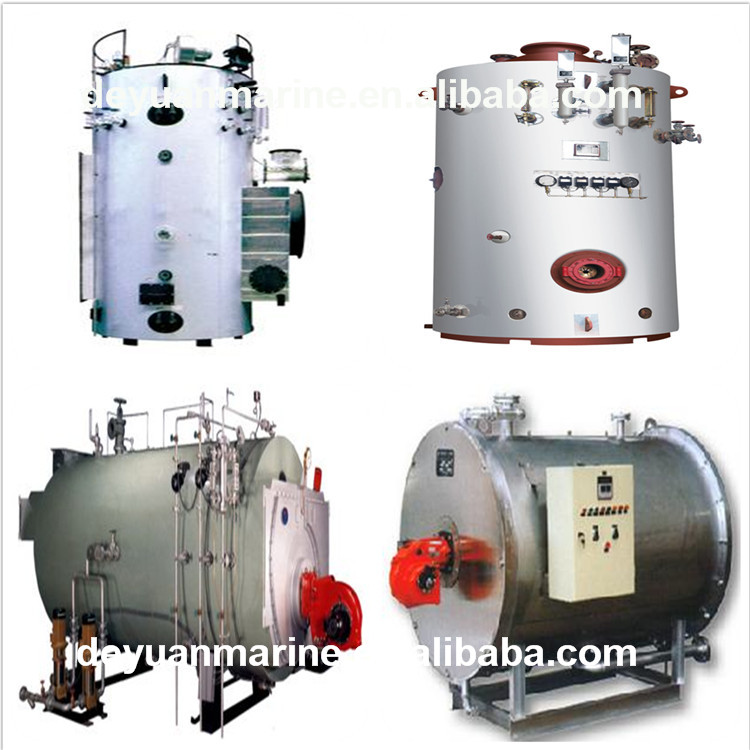

China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.

The basic structure of COB-series Oil-fired exhaust-gas boiler has a natural circulation system with a boiler shell. According to the height between the decks and the way of the host engine discharge the gas, this series boiler can be settled vertically or horizontally. The Oil-fired part and exhaust-gas part can work together or separately. The steam capacity of the Oil-fired part is 0.3t/h~4t/h, the maximal working pressure is 0.7Mpa; the heating surface area of the exhaust-gas part is decided by the discharged smoke of host engine

Capacity	Heating surface	Working pressure	Dimension					Boil weight
T/h	m2	Mpa	H	D	D1	D2	D3	kg
0.25	42	0.7	3850	1424	400	250	400	5300
0.3	60	0.7	4050	1424	450	250	500	5500
0.5	70	0.7	4050	1624	450	250	500	6800
