New
Three trough
Industrial
Fire Tube
Low Pressure
Vertical
Oil-fired
Guangdong, China (Mainland)
DEYUAN MARINE
Vertical oil fired boiler
Steam
According to models
According to models
ISO9001:2008;BV
Engineers available to service machinery overseas
lower than 6.0t/h
Standard packing
Within 30 days after the prepaid payment or L/C at sight
Vertical oil fired boiler
Vertical oil fired boiler
1.little cubage, simple and firm structure, small installed area.
2.Suitable for ships with steam capacity lower than 6.0t/h.
3.Applicable for cargo ship,small oil tanker,container ship,engineering ship,RO/RO etc.
Marine oil fired boiler

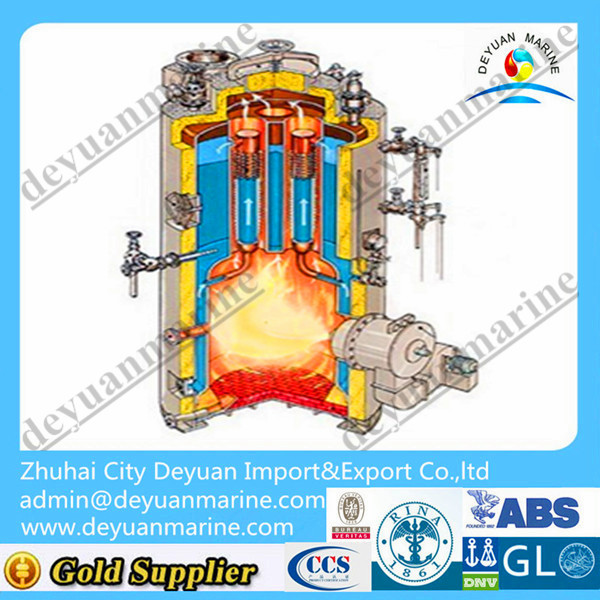

OBS-series small vertical oil-fired boiler is running automatically, this is right for different ship companies, who want ship cabin with no person operating. When the automatic controlling system is wrong and the cool-boiler is started, it can be controlled by hand. The alarm signal-output set connected outside is installed in the boiler control pocket, the same as remote-control emergency cut connection tip.
There is a manhole in the nominal part in this series boiler, convenient for the inspection and maintaining of the boiler's water surface. There are many hand hole underside the boiler, not only for the inside clearing, but also for the connection with exhaust-gas economizer.
Vaporized Quantum | Working Pressure | Overall Dimension( mm ) | Net Weight of Boiler (Kg) | Water Capacity | ||
A | B | ΦC | ||||
500 | 0.7 | 3550 | 3100 | 1250 | 2600 | 1.2 |
700 | 0.7 | 3750 | 3300 | 1250 | 2900 | 1.3 |
1000 | 0.7 | 3870 | 3370 | 1450 | 3400 | 1.9 |
1200 | 0.7 | 3910 | 3410 | 1500 | 3900 | 2.1 |
1500 | 0.7 | 4130 | 3630 | 1650 | 4500 | 2.7 |
2000 | 0.7 | 4410 | 3910 | 1750 | 5400 | 3.0 |
2500 | 0.7 | 4380 | 3880 | 1950 | 6900 | 3.8 |
3000 | 0.7 | 4680 | 4080 | 2050 | 7700 | 4.9 |
4500 | 0.7 | 5240 | 4590 | 2350 | 11400 | 6.8 |
6000 | 0.7 | 6180 | 5480 | 2450 | 14000 | 8.4 |
Contact: Anna Wong
China Deyuan Marine Fitting Co., Ltd.
Subsidiary: Zhuhai City Deyuan Import & Export Co., Ltd.
Tel: +86-756-6302052
Fax: +86-756-8305812
MP: +86-13798955790
WhatsApp: +86-13798955790
Skype: sales11[at]deyuanmarine.com
Email: sales11[at]deyuanmarine.com
http://www.deyuanmarine.com
