Low price marine vertical boiler diesel oil fired or gas fired steam hot water boiler horizontal type marine boilers made in China
Marine oil fired boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.
OBS-series small vertical oil-fired boiler is running automatically, this is right for different ship companies, who want ship cabin with no person operating. When the automatic controlling system is wrong and the cool-boiler is started, it can be controlled by hand. The alarm signal-output set connected outside is installed in the boiler control pocket, the same as remote-control emergency cut connection tip.
There is a manhole in the nominal part in this series boiler, convenient for the inspection and maintaining of the boiler's water surface. There are many hand hole underside the boiler, not only for the inside clearing, but also for the connection with exhaust-gas economizer.
| Vaporized Quantum ( Kg/h ) | Working Pressure ( MPa) | Overall Dimension( mm ) | Net Weight of Boiler (Kg) | Water Capacity (m3) | ||
| A | B | ΦC | ||||
| 500 | 0.7 | 3550 | 3100 | 1250 | 2600 | 1.2 |
| 700 | 0.7 | 3750 | 3300 | 1250 | 2900 | 1.3 |
| 1000 | 0.7 | 3870 | 3370 | 1450 | 3400 | 1.9 |
| 1200 | 0.7 | 3910 | 3410 | 1500 | 3900 | 2.1 |
| 1500 | 0.7 | 4130 | 3630 | 1650 | 4500 | 2.7 |
| 2000 | 0.7 | 4410 | 3910 | 1750 | 5400 | 3.0 |
| 2500 | 0.7 | 4380 | 3880 | 1950 | 6900 | 3.8 |
| 3000 | 0.7 | 4680 | 4080 | 2050 | 7700 | 4.9 |
| 4500 | 0.7 | 5240 | 4590 | 2350 | 11400 | 6.8 |
| 6000 | 0.7 | 6180 | 5480 | 2450 | 14000 | 8.4 |
Marine horizontal oil-fired boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.
HOB-series boiler, with a cylindrical shell, is settled horizontally. it is very suitable for the ship with low height between decks. It owns a wave-shape furnace as its burning room and single-head screw tube as its heating-transferring element, therefore, HOB-series boiler has lighter weight, smaller cubage and higher heat-transferring efficiency, that made it more economical.
The steam of the boiler can warm the host and assisted engine, heat the fuel oil and do something else during daily life. The steam capacity is 0.5t/h~6t/h, the maximal working pressure is 1.25Mpa.
| Steam Output(kg/h) | Working Pressure (MPa) | A (mm) | B (mm) | ØC (mm) | ØD (mm) | H (mm) | Net Weight of Boiler(kg) |
| 500 | 0.7 | 2300 | 596 | 1220 | 250 | 1840 | 2400 |
| 700 | 0.7 | 2550 | 550 | 1224 | 260 | 1900 | 3150 |
| 1000 | 0.7 | 2900 | 834 | 1628 | 300 | 2130 | 4900 |
| 1500 | 0.7 | 3500 | 950 | 1628 | 350 | 2240 | 6800 |
| 2000 | 1.0 | 3920 | 1045 | 1828 | 400 | 2574 | 10300 |
| 4000 | 1.0 | 4915 | 967 | 2234 | 500 | 2760 | 14000 |
| 6000 | 1.25 | 5450 | 1070 | 2436 | 600 | 3000 | 21500 |
| More types can be offered,pls contact us for more details. | |||||||
Large type marine oil-fired boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.
The OBL oil-fired assisted boiler takes use of pin tube in its convective heat-absorbing surface and installs the membrane water-cooled wall as its furnace wall, its steam capacity is 6.0t/h~20t/h. Such series boiler can be used a lot on oil tanker and chemical material ship etc. The steam output is used for the running of the steam turbine and the pump for goods loading and unloading, for heating the goods cabin ,for the places where more steam is needed.
Such series boiler uses pin-tube as the heat-transferring element, compared with other boilers, its heat-transferring elements are reduced a lot, and its cubage is smaller and more intense so that much cabin room area is saved. At the same time, this series boiler has a simple structure , its heat-transferring tubes are arranged parallevelly, as a result, the water circulates well here. The membrane water-cooled wall, whose quality is as good as the host boiler on the ship or the boiler in power plant, in the furnace is extremely firm. While the furnace is sealed off, it is suitable for burning with pressure.
| Steam Output (kg/h) | Working Pressure (MPa) | A (mm) | Ø D (mm) | H (mm) | Water Capacity (m3 ) | Net Weight of Boiler (kg) |
| 6500 | 1.0 | 5200 | 2700 | 6050 | 6.7 | 12650 |
| 8000 | 1.0 | 5800 | 2700 | 6600 | 7.0 | 13900 |
| 10000 | 1.0 | 6400 | 2700 | 7200 | 7.0 | 15200 |
| 12000 | 1.0 | 6400 | 3160 | 7300 | 10.5 | 18800 |
| 16000 | 1.6 | 7100 | 3360 | 7980 | 13.2 | 24900 |
| 20000 | 1.6 | 7200 | 3560 | 8100 | 13.5 | 28500 |
| 25000 | 1.6 | 7680 | 3860 | 8650 | 14.2 | 35000 |
| 30000 | 1.6 | 8280 | 3860 | 9250 | 14.5 | 37000 |
| 35000 | 1.6 | 8400 | 4160 | 9650 | 17.8 | 42800 |
Marine exhaust-gas boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.
EGB-series exhaust-gas boiler with a boiler shell can be settled vertically ,this series boiler has a natural circulation structure; it is a perfect energy-saving set to make use of exhaust heat of discharged gas from ship diesel. It owns smaller cubage ,lighter weight, higher exhaust-heat utilization efficiency because it uses the effective single-head screw tube as its heat-transferring smoke tube.
| Heating surface | Working pressure | Main engine power recommendation | Dimension(mm) | Boiler weight | |||
| m2 | Mpa | kw | H | D | D1 | C | kg |
| 35 | 0.7 | 1100-1600 | 3320 | 1020 | 400 | 750 | 3000 |
| 55 | 0.7 | 1800-2400 | 3520 | 1220 | 500 | 850 | 3800 |
| 70 | 0.7 | 2300-3000 | 3520 | 1320 | 500 | 900 | 4400 |
| 85 | 0.7 | 3000-3800 | 3520 | 1450 | 600 | 1000 | 5600 |
| 100 | 0.7 | 3500-4500 | 3520 | 1550 | 600 | 1050 | 7000 |
| 120 | 0.7 | 4500-5500 | 3600 | 1920 | 9000 | ||
| 150 | 0.7 | 5500-6500 | 3700 | 2020 | 11000 | ||
| 180 | 0.7 | 6500-8000 | 3700 | 2220 | 13500 | ||
| More types can be offer,pls contact us for more details | |||||||
Combined oil-fired exhaust-gas boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.
The basic structure of COB-series Oil-fired exhaust-gas boiler has a natural circulation system with a boiler shell. According to the height between the decks and the way of the host engine discharge the gas, this series boiler can be settled vertically or horizontally. The Oil-fired part and exhaust-gas part can work together or separately. The steam capacity of the Oil-fired part is 0.3t/h~4t/h, the maximal working pressure is 0.7Mpa; the heating surface area of the exhaust-gas part is decided by the discharged smoke of host engine
| Capacity | Heating surface | Working pressure | Dimension | Boil weight | ||||
| T/h | m2 | Mpa | H | D | D1 | D2 | D3 | kg |
| 0.25 | 42 | 0.7 | 3850 | 1424 | 400 | 250 | 400 | 5300 |
| 0.3 | 60 | 0.7 | 4050 | 1424 | 450 | 250 | 500 | 5500 |
| 0.5 | 70 | 0.7 | 4050 | 1624 | 450 | 250 | 500 | 6800 |
| 0.5 | 90 | 0.7 | 4150 | 1724 | 600 | 250 | 600 | 7500 |
| 0.5 | 120 | 0.7 | 4300 | 1860 | 700 | 250 | 700 | 9000 |
| 0.8 | 90 | 0.7 | 4820 | 1800 | 600 | 300 | 600 | 8500 |
| 0.8 | 140 | 0.7 | 4850 | 2024 | 700 | 300 | 700 | 12000 |
| 0.9 | 110 | 0.7 | 4820 | 2024 | 700 | 300 | 700 | 11000 |
| 1.0 | 90 | 0.7 | 4820 | 1924 | 600 | 300 | 600 | 9500 |
| 2.0 | 75 | 0.7 | 4950 | 2100 | 450 | 350 | 500 | 12000 |
| 1.0 | 150 | 0.7 | 4750 | 2224 | 700 | 300 | 700 | 13000 |
| 1.2 | 130 | 0.7 | 4750 | 2224 | 700 | 300 | 700 | 13000 |
| 1.2 | 180 | 0.7 | 5000 | 2500 | 900 | 300 | 900 | 16000 |
| 1.6 | 200 | 0.7 | 5000 | 2400 | 900 | 300 | 900 | 18000 |
| More types can be offered,pls contact us for more details. Marine hot water boiler China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details. the medium material of HWB-series hot-water boiler is hot water below 90°C . This series boiler is used to warm the host engine and the deckhouse of the shipyard as well as heat the fuel oil and lubricating oil. Oil-fired is the main way for heating and electricity-heat can be utilized for an assisted way for heating. The heat tube plate can also be installed in HWB-series hot-water boiler to produce hot water for sailors' bathing and other things. Taking advantages of pin-tube, pin-pan is used as the key heat-transferring element of HWB-series hot-water boiler, so that this series boiler owns a simple structure, high heat-transferring efficiency, small cubage, light weight etc. Quantity of Heat( MJ/h )Working Pressure(MPa)OOverall Dimension( mm )Net Weight of Boiler(Kg )AΦB2000.416005205503000.417505808204000.419006809005000.420007609607500.42100920125010000.422001100160015000.4235012801960 | ||||||||
Marine hot oil boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.
| Type | power | Pressure | Oiloutlet flow temperature | Medium capacity | External dimension | ||||
| kw | Mpa | (ºC) | M3 | L | D | E | F | H | |
| WRY-350 | 350 | 0.62 | 300 | 0.22 | 2125 | 1200 | DN200 | DN80 | 1390 |
| WRY-700 | 700 | 0.68 | 300 | 0.52 | 2545 | 1410 | DN300 | DN100 | 1645 |
| WRY-1200 | 1200 | 0.7 | 300 | 1.26 | 3525 | 1640 | DN300 | DN125 | 1890 |
| WRY-1800 | 1800 | 0.8 | 300 | 1.6 | 3900 | 1690 | DN350 | DN125 | 1940 |
| WRY-2300 | 2300 | 0.8 | 300 | 2 | 4261 | 1905 | DN400 | DN125 | 2160 |
| WRY-2900 | 2900 | 0.8 | 300 | 2.73 | 4610 | 2140 | DN500 | DN150 | 2370 |
| WRY-3500 | 3500 | 0.8 | 300 | 3.4 | 5205 | 2175 | DN500 | DN150 | 2400 |
| WRY-4200 | 4200 | 0.8 | 300 | 3.4 | 5225 | 2430 | DN600 | DN200 | 2665 |

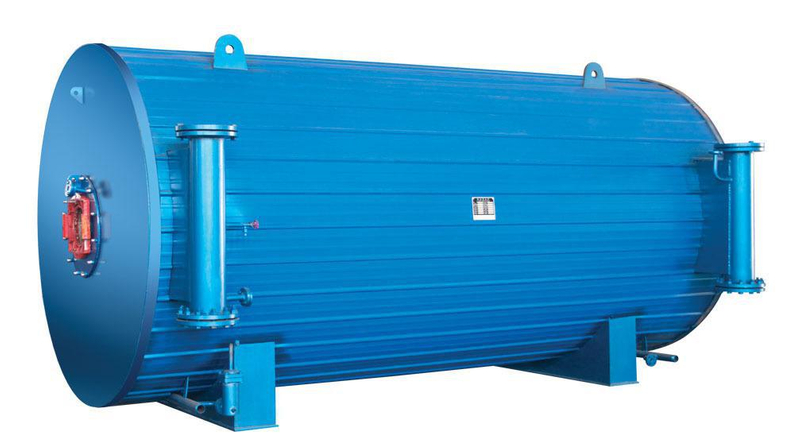

Marine horizontal hot oil boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.
| Type | power | pressure | Oil outlet flow temperature | Medium capacity | Dimension | |||
| kw | Mpa | (ºC) | M3 | L | D | E | F | |
| LRY-350 | 350 | 0.68 | 300 | 0.23 | 2090 | 1200 | DN200 | DN80 |
| LRY-700 | 700 | 0.68 | 300 | 0.37 | 2187 | 1500 | DN200 | DN100 |
| LRY-900 | 900 | 0.68 | 300 | 0.43 | 2395 | 1500 | DN300 | DN100 |
| LRY-1200 | 1200 | 0.7 | 300 | 0.96 | 2846 | 1700 | DN300 | DN125 |
| LRY-1800 | 1800 | 0.8 | 300 | 1.22 | 3545 | 1770 | DN350 | DN125 |
| LRY-2300 | 2300 | 0.8 | 300 | 1.6 | 3775 | 1970 | DN400 | DN125 |
| LRY-2500 | 2500 | 1.1 | 300 | 1.84 | 3997 | 1990 | DN400 | DN125 |
| LRY-3000 | 3000 | 0.8 | 300 | 2.57 | 4194 | 2200 | DN500 | DN150 |
| LRY-3500 | 3500 | 0.8 | 300 | 2.65 | 4673 | 2250 | DN500 | DN150 |
More types of boilers with competitive price can be offered, please contact us for more details.
