SOLAS approved Davit-Launched Inflatable Life Raft

Specifications

Life Raft:
1.Certificate:CCS and EC.
2.SOLAS approved.
3.Open automatically.
4.material:fibr

Life Raft:

SOLAS approved Davit-Launched Inflatable Life Raft:

Feature:

1.Certificate:CCS,EC etc.
2.SOLAS approval.

3.Open automatically.
4.material:fibre reinforced plastic.

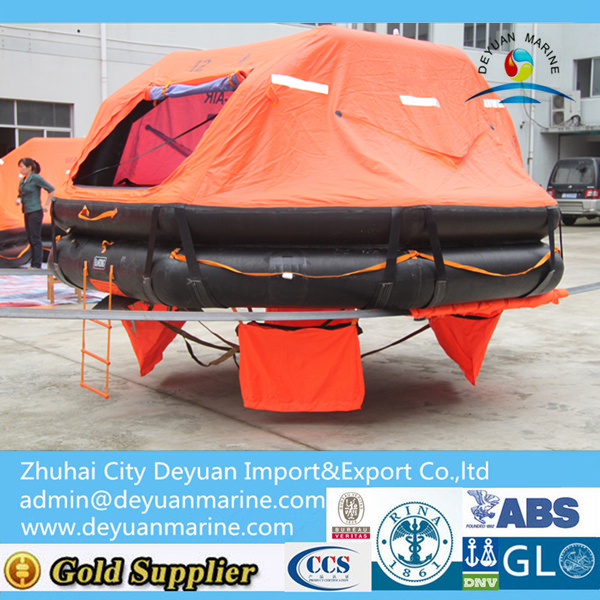

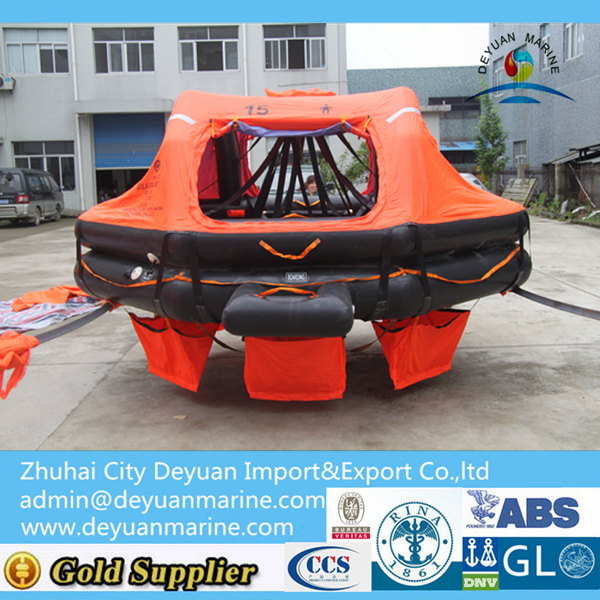

The Davit-Launched Inflatable Life Raft is stored in containers on deck and connected to the davit, can be inflated, boarded from the deck,

and then lowered to water level.

Inflation method:

This is a type to hang life-raft at ship side by launching equipment.go on board from

ship’s deck when inflate and to fall it down on the sea by davit.In case of failure on

davit launching equipment,the life-raft is also designed to be inflated automatically

in the same way as throw-over type.

The standard sizes of the life Raft are available with: 15, 20 and 25 persons.

Appliance Scope:

Lifesaving for the ship’s passengers in international voyage.

Specification:

Davit-Launched Inflatable Life Raft
Capacity(persons)	Weight(KG) SOLAS A PACK	Size of Container(MM)	Size of Outer Packing LXBXH(MM)
15	165	Φ700×1460	1540×780×820
20	185	Φ700×1460	1540×780×820
25	205	Φ750×1460	1540×830×870
