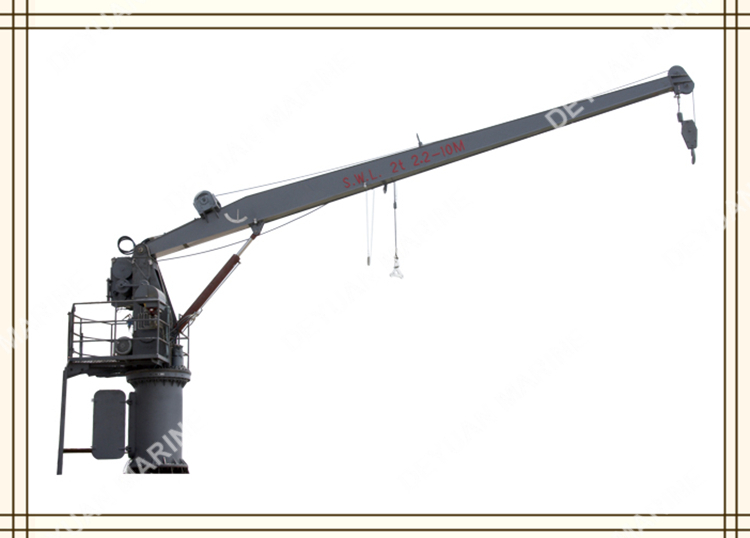

Single Arm Rotary Boat Davit with Crane

  • DEYUAN

Specifications

Single arm rotary boat davit:
1.Class certificates:ABS, BV, CCS, DNV, EC, GL, LR, NK, RINA, KR etc.
2.SOLAS approval



Single arm rotary boat davit:

Single arm rotary boat davit with crane :

This device slew by the hydraulic, and launch the boat to the water surface by the boat own gravity, slew the boat or raft

outboard under the condition of loss of electricity, while Launching, the passengers could pull the remote control

cable in the boat to launch or stop rescue boat or raft. As well, the crews can operate it on the deck.

This device meets the SOLAS 1974, the international life saving equipment rules LSA and IMO,

MSC81 (70) and other regulatory requirements.

The single arm rescue boat / raft lowering device and crane main technical specifications

ModelMax. Safety working loadHoisting loadHoisting speedLanding speedRope capacity of the reelRotation Radius
SARC2121KN14KN≥18m/min40-60m/min30m3600-4500mm
SA23-123KN14KN3600-5400mm
SA23-223KN18KN3600-5000mm

Crane main Technical data

Max. Hoisting loadRope capacity of the reelMax. Rotation AngleLanding speedRotation Radius
30KN30m≤330°11-15 m/min4100-5000mm
15KN4100-7300mm
30KN4100-5500mm
