Single Chute Vertical Passage Marine Evacuation System

Inquire Add to Basket

  • DY050501

  • Marine

  • Evacuation System

  • 10m, CCS

  • DEYUAN MARINE

  • Marine

  • Adult

  • CE, ISO, CCS

  • CCS

  • China

Single Chute Vertical Passage Marine Evacuation System

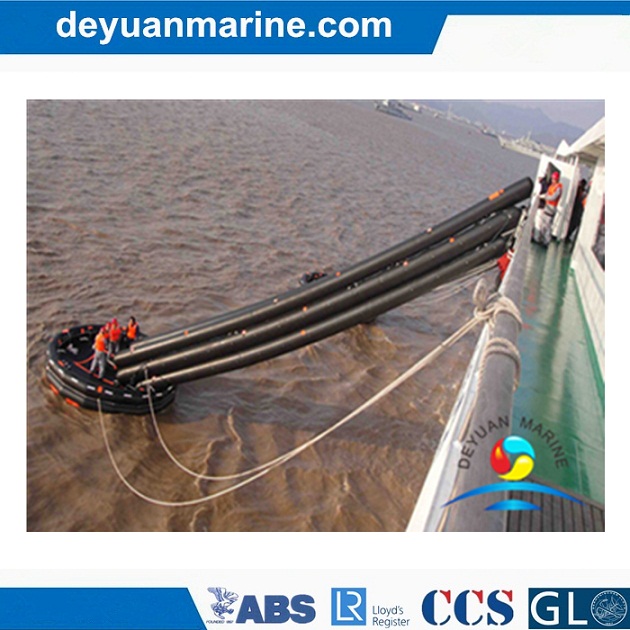

The Marine Evacuation System is stowed in The stainless steel container on The deck. When releasing The handle, The System will be formed into The sea automatically.
Specification: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 and 22 meters.
Approval: CCS.
Approval standard
1 .  MSC.81 ( 70 ) Revised Recommendation on Testing of Life-saving Appliances
2 .  MSC.48 ( 66 ) International Life-saving Appliance Code
Model Maximum Stowage height
(meter)		 Maximum assigned
(person)		 Capacity on the platform
(person)		 Weight
(kg)		 Dimension of container
(mm)
MES-VP10.0-300 10 300 60 1360 2300 × 1600 × 2200
MES-VP11.0-300 11

1370
   MES-VP12.0-300 12

1380
MES-VP13.0-300 13

1390
MES-VP14.0-300 14

1400
MES-VP15.0-300 15

1410
MES-VP16.0-300 16

1420
MES-VP17.0-300 17

1430
MES-VP18.0-300 18

1440
MES-VP19.0-300 19

1450
MES-VP20.0-300 20

1460
MES-VP21.0-300 21

1470
MES-VP22.0-300 22

1480
