Deyuan Marine

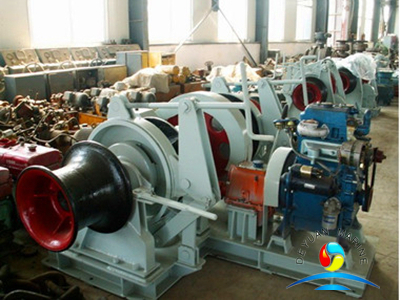

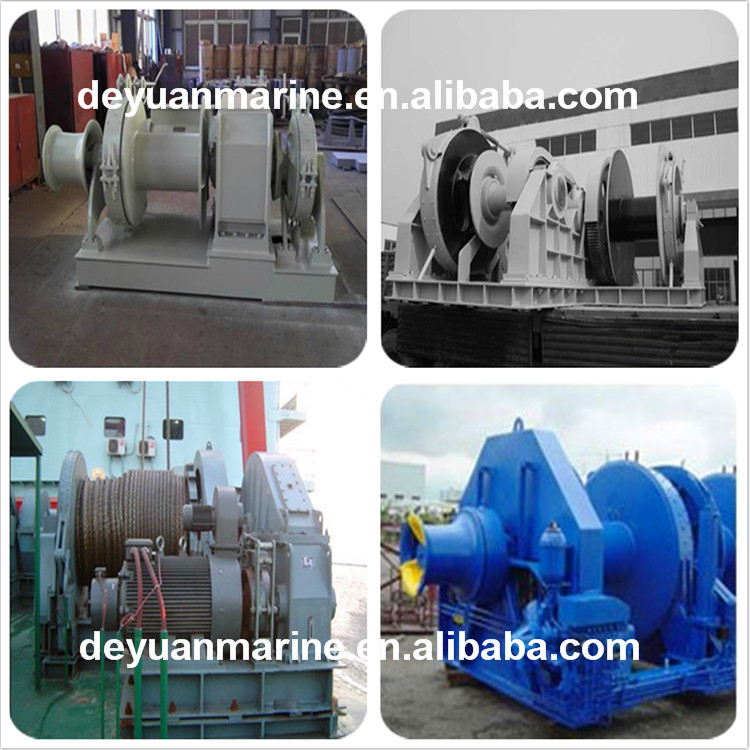

Hydraulic anchor windlass
1.High quality
2.Fast delivery
3.Long life service
4.Competitive price
5.ABS, LR, BV, DNV,NK, CCS
Main technical parameter
anchor chain diam | working load | over loading | loading support | nominal speed | mooring line load | |||
(mm) | AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | m/min | Kn |
17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 | 8 |
19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 9 | 10 |
20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 9 | 10 |
22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 | 15 |
24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 | 20 |
26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 | 20 |
28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 9 | 20 |
30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 | 30 |
32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 | 30 |
34 | 49.1 | 54.9 | 73.3 | 82.4 | 294 | 421 | 9 | 30 |
36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 | 30 |
38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 | 40 |
40 | 68 | 76 | 102 | 114 | 402 | 576 | 9 | 40 |
42 | 75 | 83.8 | 112.5 | 125.7 | 442 | 632 | 9 | 50 |
44 | 82.3 | 92 | 123.5 | 138 | 483 | 691 | 9 | 50 |
46 | 89.9 | 100.5 | 134.9 | 150.8 | 526 | 753 | 9 | 50 |
48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 816 | 9 | 50 |
50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 | 50 |
