1.High quality
2.Fast delivery
3.Long life service
4.Competitive price
5.ABS, LR, BV, DNV,NK, CCS

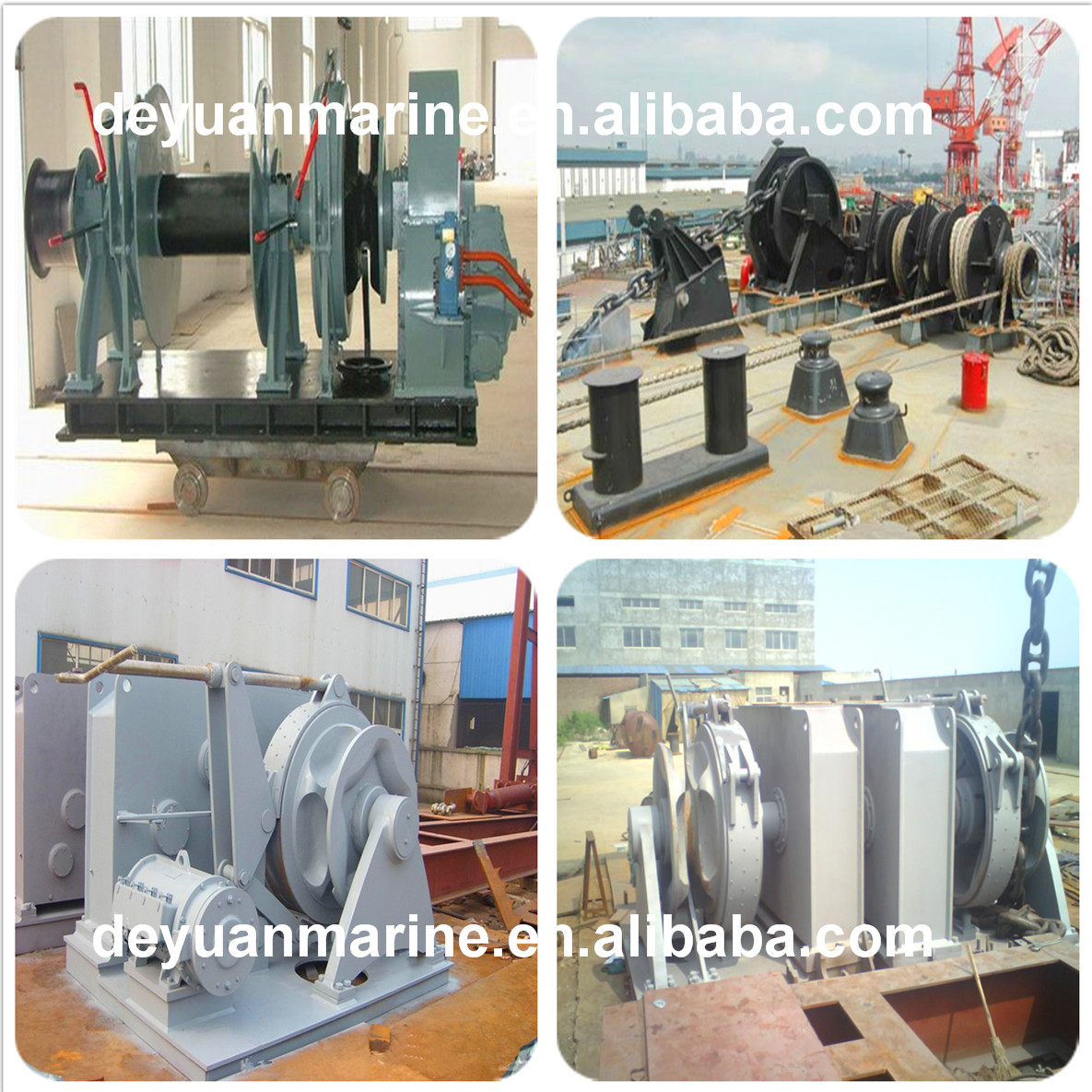

YMB series Electric anchor windlass
1.High quality
2.Fast delivery
3.Long life service
4.Competitive price
5.ABS, LR, BV, DNV,NK, CCS
Type illustration
the first letter: D-electric Y-hydraulic S-manual C-diesel engine
the letter M:anchor winch
the third letter: Type A,B,E
Main technical parameter
| Type | anchor chain diam | working load | over loading | loading support | nominal speed | Drum load | Nominal speed | Cable capacity | Mooring line load | ||||
| (mm) | AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | m/min | Kn | m/min | m | Kn | ||
| DMB-17.5 | 17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 | 10 | 10 | Φ11x100 | 8 | |
| DMB-19 | 19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 9 | 15 | 10 | Φ13x100 | 10 | |
| DMB-20 | 20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 9 | 20 | 10 | Φ13x100 | 10 | |
| DMB-22 | 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 | 20 | 15 | Φ15x100 | 15 | |
| DMB-24 | 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 | 20 | 15 | Φ15x100 | 20 | |
| DMB-26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 | 20 | 10 | Φ22x100 | 20 | |
| DMB-28 | 28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 9 | 20 | 10 | Φ22x120 | 20 | |
| DMB-30 | 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 | 30 | 10 | Φ22x120 | 30 | |
| DMB-32 | 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 | 30 | 9 | Φ20x120 | 30 | |
| DMB-34 | 34 | 49.1 | 54.9 | 73.3 | 82.4 | 294 | 421 | 9 | 40 | 9 | Φ20x120 | 30 | |
| DMB-36 | 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 | 30 | 12 | Φ20x120 | 30 | |
| DMB-38 | 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 | 40 | 15 | Φ22x150 | 40 | |
| DMB-40 | 40 | 68 | 76 | 102 | 114 | 402 | 576 | 9 | 40 | 9 | Φ22x150 | 40 | |
| DMB-42 | 42 | 75 | 83.8 | 112.5 | 125.7 | 442 | 632 | 9 | 40 | 15 | Φ22x150 | 50 | |
| DMB-44 | 44 | 82.3 | 92 | 123.5 | 138 | 483 | 691 | 9 | 50 | 15 | Φ26x200 | 50 | |
| DMB-46 | 46 | 89.9 | 100.5 | 134.9 | 150.8 | 526 | 753 | 9 | 50 | 18 | Φ26x200 | 50 | |
| DMB-48 | 48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 816 | 9 | 60 | 10 | Φ26x200 | 50 | |
| DMB-50 | 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 | 80 | 15 | Φ26x200 | 50 | |
