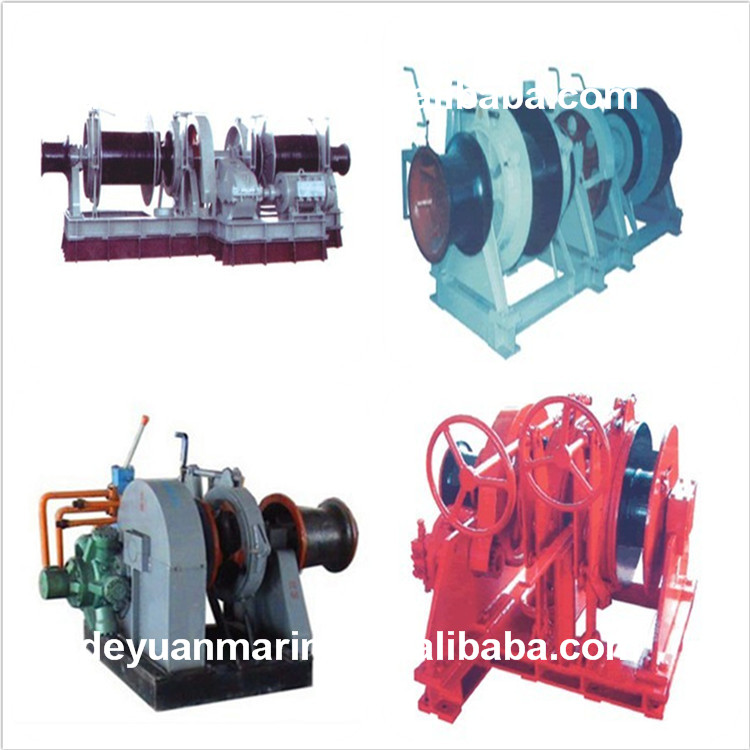

Single hydraulic combined windlass

Specifications

1.High quality
2.Fast delivery
3.Long life service
4.Competitive price
5.ABS, LR, BV, DNV,NK, CCS

YMB series Electric anchor windlass

1.High quality
2.Fast delivery
3.Long life service
4.Competitive price

5.ABS, LR, BV, DNV,NK, CCS



Type illustration

the first letter: D-electric Y-hydraulic S-manual C-diesel engine

the letter M:anchor winch

the third letter: Type A,B,E



Main technical parameter

Type	anchor chain diam	working load		over loading		loading support		nominal speed	Drum load	Nominal speed	Cable capacity	Mooring line load
	(mm)	AM2	AM3	AM2	AM3	AM2	AM3	m/min	Kn	m/min	m	Kn
YMB-17.5	17.5	13	14.6	19.5	21.9	80	115	9	10	10	Φ11x100	8
YMB-19	19	15.3	17.2	23	25.8	95	135	9	15	10	Φ13x100	10
YMB-20	20	17.9	20	26.9	30	110	157	9	20	10	Φ13x100	10
YMB-22	22	20.6	23	30.9	34.5	126	180	9	20	15	Φ15x100	15
YMB-24	24	24.5	27.4	36.8	41.1	149	214	9	20	15	Φ15x100	20
YMB-26	26	28.7	32.1	43.1	48.2	175	250	9	20	10	Φ22x100	20
YMB-28	28	33.3	37.2	50	55.8	202	289	9	20	10	Φ22x120	20
YMB-30	30	38.3	42.8	57.5	64.2	231	330	9	30	10	Φ22x120	30
YMB-32	32	43.5	48.6	65.3	72.9	261	374	9	30	9	Φ20x120	30
YMB-34	34	49.1	54.9	73.3	82.4	294	421	9	40	9	Φ20x120	30
YMB-36	36	55.1	61.6	82.7	92.4	329	470	9	30	12	Φ20x120	30
YMB-38	38	61.4	68.9	92.1	103.4	365	522	9	40	15	Φ22x150	40
YMB-40	40	68	76	102	114	402	576	9	40	9	Φ22x150	40
YMB-42	42	75	83.8	112.5	125.7	442	632	9	40	15	Φ22x150	50
YMB-44	44	82.3	92	123.5	138	483	691	9	50	15	Φ26x200	50
YMB-46	46	89.9	100.5	134.9	150.8	526	753	9	50	18	Φ26x200	50
YMB-48	48	97.9	109.4	146.9	164.1	570	816	9	60	10	Φ26x200	50
YMB-50	50	106.3	118.8	159.5	178.2	617	882	9	80	15	Φ26x200	50
