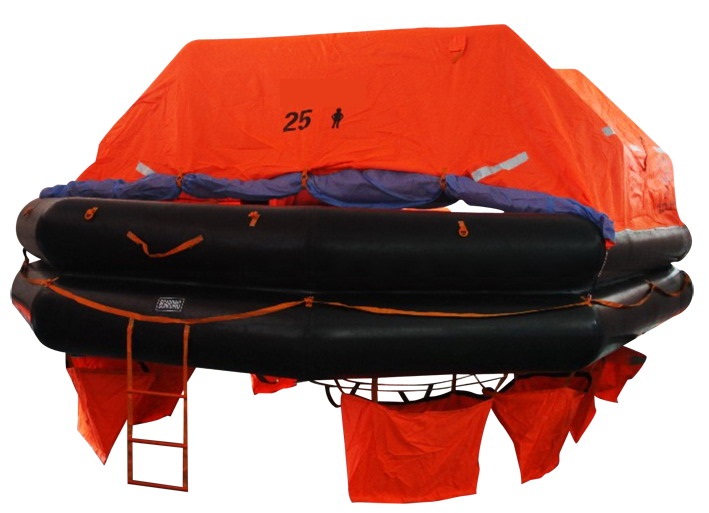

Solas Approved Life Rafts with 25 Persons Throw Over Board Inflatable Liferafts with Gl Class Approval Certificate

Availability:
  • DEYUAN

Solas Approved Life Rafts with 25 Persons Throw Over Board Inflatable Liferafts with GL class approval certificate

Solas Approved Life Rafts with 25 Persons Throw Over Board Inflatable Liferafts with Gl Class Approval Certificate
Solas Approved Life Rafts with 25 Persons Throw Over Board Inflatable Liferafts with Gl Class Approval Certificate
Solas Approved Life Rafts with 25 Persons Throw Over Board Inflatable Liferafts with Gl Class Approval Certificate

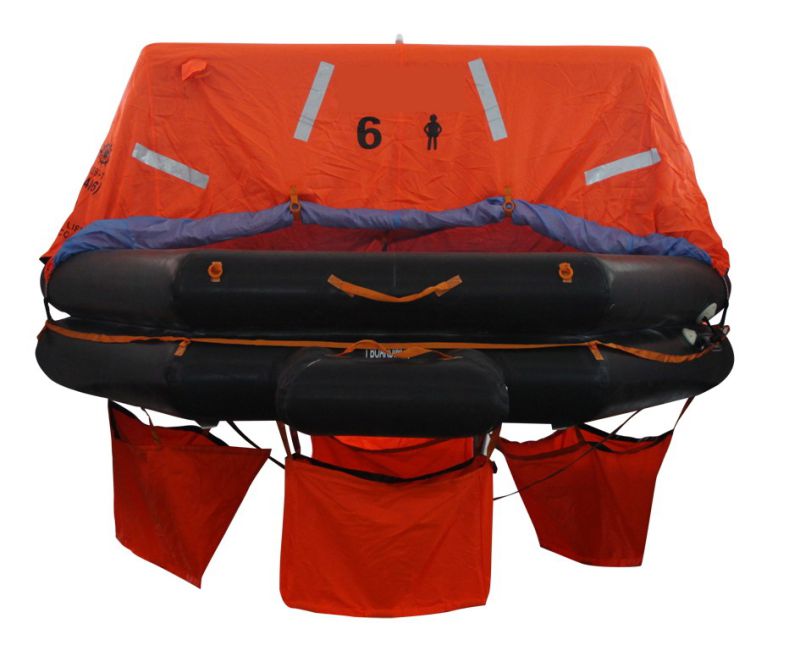

Person Throw Over Board Life Raft
China Deyuan Marine Fitting Co.,ltd Is an enterprise specialized in the production of ship gas bilges raft.

Companies design and manufacture of inflatable life raft existing 10 series, more than 60 models specifications of the products.

Pls contact us for more details.

Type: 6\8\10\12\15\16\20\25\30\35.
Suitable for installing in the vessels sailing on international voyages.
It meets the China MSA-" Regulations for the Statutory Surveys of Ships and offshore

Installations-Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages"2004,and it′s 2008 Amendments,Part4, Ch.3.and SOLAS(74/96),

LSA,MSC.81(70), MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002).
Max. Storage Height: 18~36m.
Equipment Outfit: SOLAS A\B PACK.
Certificates:CCS,GL.

 Type 6Man 8Man
Shape Regular hexagon

Capacity (Persons) 6 8
Dimension(L×W×H) 2104×2104×1200 2390×2390×1250
Cylinder 4L×1 5L×1
Container dimension
    (mm)
SOLAS A PACK  (a×b) 1090×615
SOLAS B PACK  (a×b) 1045×545
Packaging dimension
    (mm)
SOLAS A PACK  (c×d×e) 1140×675×650
SOLAS B PACK  (c×d×e) 1100×600×590
Required bollard pull  (KN) For 2knot speed 0.30 0.35
For 3knot speed 0.80   0.90
Weight   (kg) 78 90



1.Man Throw Over Board Life Raft-Suitable for installing in the vessels sailing on international voyages.
2.Open-Reversible Inflatable Life Raft-Suitable for installing in the vessels sailing on international voyages(high speed vessel).
3.Man Self-Righting Inflatable Life Raft-Suitable for installing in the vessels sailing on international voyages.
4.Davit-launched  Inflatable Life Raft-Suitable for installing in the vessels sailing on international voyages.
5.Davit-launched Self-righting Inflatable Life Raft-Suitable for installing in the vessels sailing on international voyages.
6.Throw-overboard Yacht Inflatable Life Raft-Suitable for small craft up to 24m length of hull as life saving equipment.
7.Throw-overboard Self-righting Yacht Inflatable Life Raft-Suitable for small craft up to 24m length of hull as life saving equipment.
8.Throw-overboard Inflatable Life Raft-Suitable for small craft up to 24m length of hull as life saving equipment.
9.Throw-overboard Inflatable Life Raft-Suitable for fishing boat use only.
