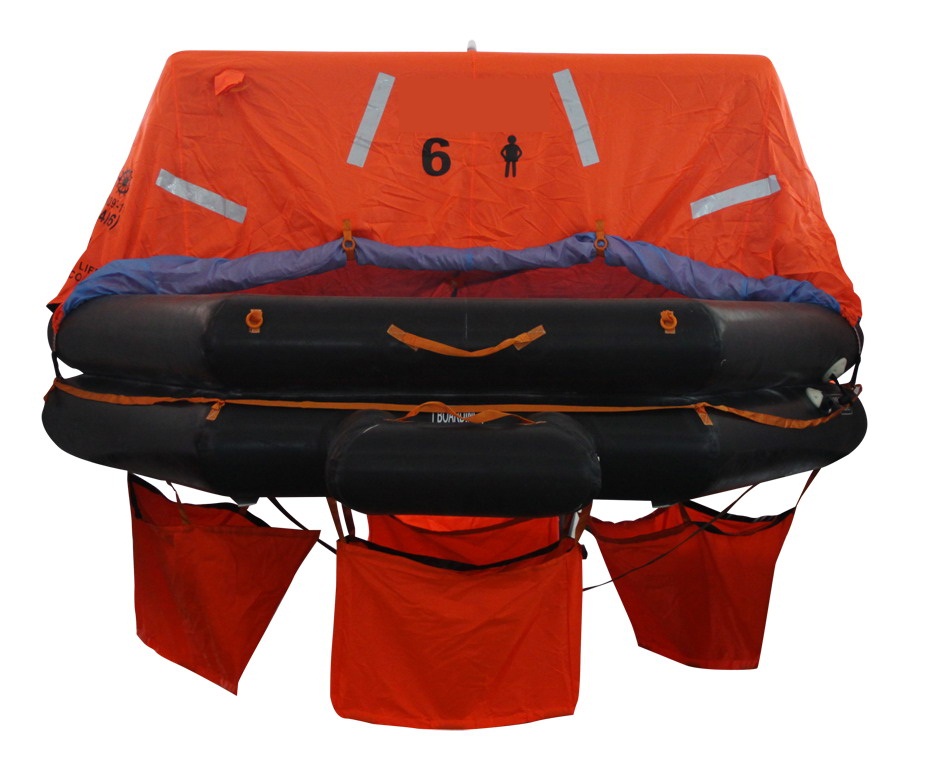

Throw-over board inflatable liferafts are in accordance with 1996 Amendment to the
International Convention for the Safety of Life at Sea, 1974, MSC.81 (70) , MSC.218(82),
MSC.226(82) and ISO 15738-2002. This product has been approved by CCS, ZY, EC (GL) etc.
It can be used in the ships engaged on international voyages.
Type | KHA-6 | KHA-8 | KHA-10 | KHA-12 | KHA-15 | KHA-16 | |
Physical form | regular octagon | regular octagon | regular octagon | regular octagon | regular octagon | regular octagon | |
Capacity | 6 | 8 | 10 | 12 | 15 | 16 | |
Length (mm) ,±1000 | 2170 | 2460 | 2730 | 2990 | 3300 | 3350 | |
Width (mm),±1000 | 2170 | 2460 | 2730 | 2990 | 3300 | 3350 | |
Height (mm),±50 | 1250 | 1300 | 1400 | 1400 | 1500 | 1500 | |
Pack | Dia (mm) | 545 | 545 | 615 | 615 | 670 | 670 |
Length (mm) | 1045 | 1045 | 1095 | 1095 | 1135 | 1135 | |
Weight,kg ≤ | 78 | 90 | 107 | 122 | 137 | 142 |
