Deyuan Marine

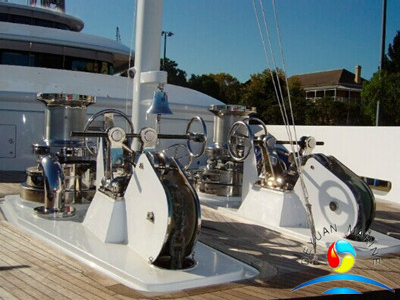

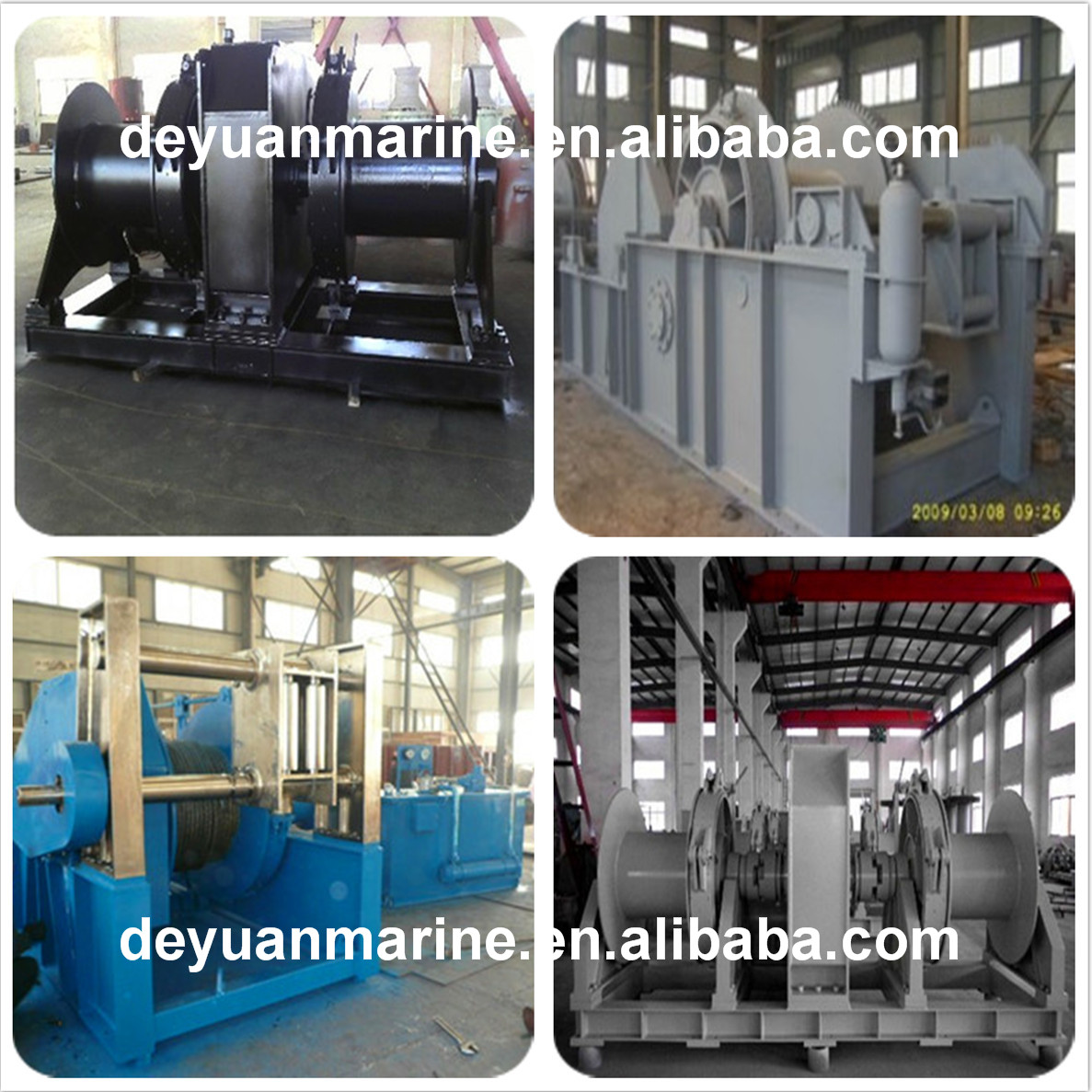

DMB series Electric anchor windlass
1.High quality
2.Fast delivery
3.Long life service
4.Competitive price
5.ABS, LR, BV, DNV,NK, CCS
Type illustration
the first letter: D-electric Y-hydraulic S-manual C-diesel engine
the letter M:anchor winch
the third letter: Type A,B,E
Main technical parameter
Type | anchor chain diam | working load | over loading | loading support | nominal speed | Drum load | Nominal speed | Cable capacity | Mooring line load | ||||
(mm) | AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | m/min | Kn | m/min | m | Kn | ||
DMA-46 | 46 | 89.9 | 100.5 | 139.4 | 150.8 | 526 | 756 | 9 | 60/75 | 15 | Φ24x200 | 50 | |
DMA-48 | 48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 815 | 9 | 60/80 | 15 | Φ24x200 | 50 | |
DMA-50 | 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 | 60/80 | 15 | Φ24x200 | 50 | |
DMA-52 | 52 | 114.9 | 128.4 | 172.4 | 192.6 | 666 | 950 | 9 | 80/100 | 15 | Φ28x200 | 60 | |
DMA-54 | 54 | 123.9 | 138.5 | 185.9 | 207.8 | 715 | 1021 | 9 | 80/100 | 15 | Φ28x200 | 60 | |
DMA-56 | 56 | 133.3 | 149 | 200 | 223.5 | 770 | 1094 | 9 | 80/100 | 15 | Φ28x220 | 60 | |
DMA-58 | 58 | 143 | 159.8 | 214.5 | 239.7 | 815 | 1170 | 9 | 80/100 | 15 | Φ28x220 | 60 | |
DMA-60 | 60 | 153 | 171 | 229.5 | 256.5 | 873 | 1247 | 9 | 100/120 | 15 | Φ30x220 | 80 | |
DMA-62 | 62 | 163.4 | 182.6 | 245.1 | 273.9 | 927 | 1323 | 9 | 100/120 | 15 | Φ30x240 | 80 | |
DMA-64 | 64 | 174.1 | 194.6 | 261.2 | 291.9 | 986 | 1409 | 9 | 100/120 | 15 | Φ30x240 | 80 | |
DMA-66 | 66 | 185.1 | 206.9 | 277.7 | 310.4 | 1040 | 1485 | 9 | 120/140 | 15 | Φ32x240 | 100 | |
DMA-68 | 68 | 196.5 | 219.6 | 294.8 | 329.4 | 1103 | 1575 | 9 | 120/140 | 15 | Φ32x260 | 100 | |
DMA-70 | 70 | 208.3 | 232.8 | 312.5 | 349.2 | 1161 | 1661 | 9 | 120/140 | 15 | Φ32x260 | 100 | |
DMA-73 | 73 | 226.5 | 253.1 | 339.8 | 379.7 | 1255 | 1795 | 9 | 135/150 | 15 | Φ34x260 | 125 | |
DMA-76 | 76 | 245.5 | 274.4 | 368.3 | 411.6 | 1355 | 1935 | 9 | 135/150 | 15 | Φ34x280 | 125 | |
DMA-78 | 78 | 258.6 | 289 | 387.9 | 433.5 | 1422 | 2025 | 9 | 135/160 | 15 | Φ36x280 | 125 | |
DMA-81 | 81 | 278.8 | 311.7 | 418.2 | 467.5 | 1521 | 2196 | 9 | 150/180 | 15 | Φ36x300 | 125 | |
DMA-84 | 84 | 300 | 335.2 | 450 | 502.8 | 1625 | 2322 | 9 | 150/180 | 15 | Φ36x300 | 125 |
