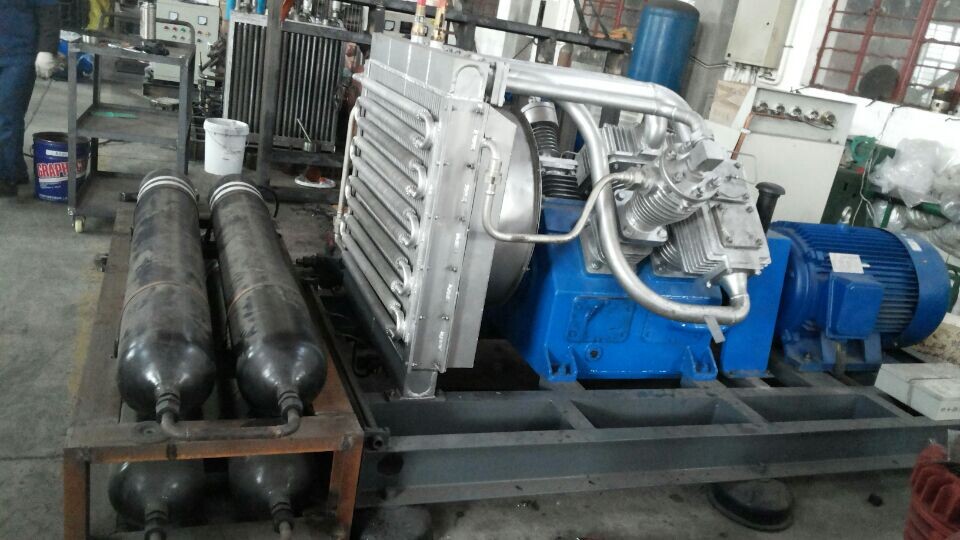

Vertical Type Marine Air Compressor:
Vertical Type Air Cooling Water Cooling Marine Air Compressor Product Description:
Medium pressure 3.0MPa
Type:air cooling or water cooling.
Suitable for air bottle equal or smaller than 0.32m3.
Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Overall size | |
m3/h | m3/min | Mpa | r/min | KW | kg | mm | ||
CZ-20/30 | Vertical type Second stage compression Piston type | 20 | 0.33 | 3 | 1000 | 5.5 | 210 | 970x490x710 belt type 1130x510x710 water cooling type |
CZ-10/30 | 10 | 0.167 | 500 | 3 |
