Guangdong, China (Mainland)
DEYUAN MARINE
JCY27-1
Other
110V/60Hz 220V/50Hz 220V/60Hz
G13
IP67
7.2KG
1*20W
7.5μF
Export Standard

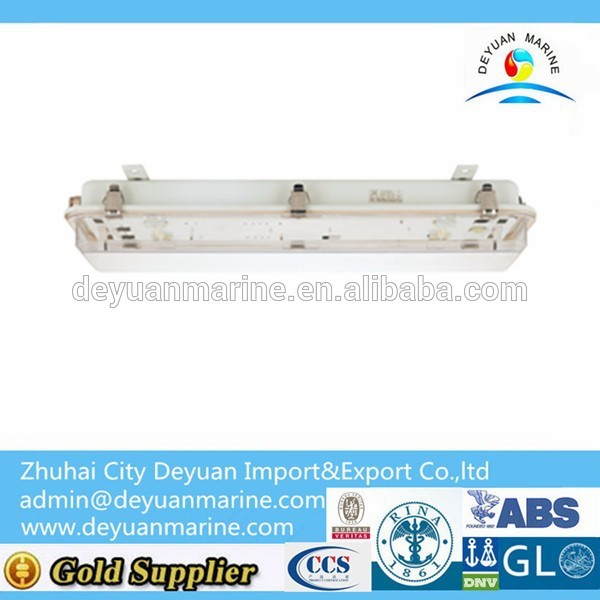

1*20W Ship Used Fluorescent Pendant Light JCY27-1
Application scope:
Applied to illumination of water stripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather
deck etc. The environmental temperature for work is -20°C ~ 55°C.
Product characteristics:
1. The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC, and has seal structure.
2. In order to prevent electric shock, lamp internal and external terminals equipped with tag.
3. Plug-in type lampholder, equipped wiring terminal inside, convenient to connect.
4. The lamp equipped B15d lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the marking, remark clearly that need the
emergency device when order.
5. Equipped compensating capacitance inside the light, also has the good effect of start.
Certificates:
CCS (China Classification Society)
Standard:
Conform to IEC60092-306-2009 standard and GRADE ENTRY NORMS FOR STEEL SHIPS.
Type | JCY27-1 |
Voltage | 110V/60Hz, 220V/50Hz, 220V/60Hz |
Power Factor | >0.85 |
Lamp Holder | G13 |
Cable Diameter | Dia8mm-16mm |
Protection Class | IP67 |
Power | 1x20W |
Weight | 7.2kg |
1*20W Fluorescent Pendant Light JCY27-1
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
