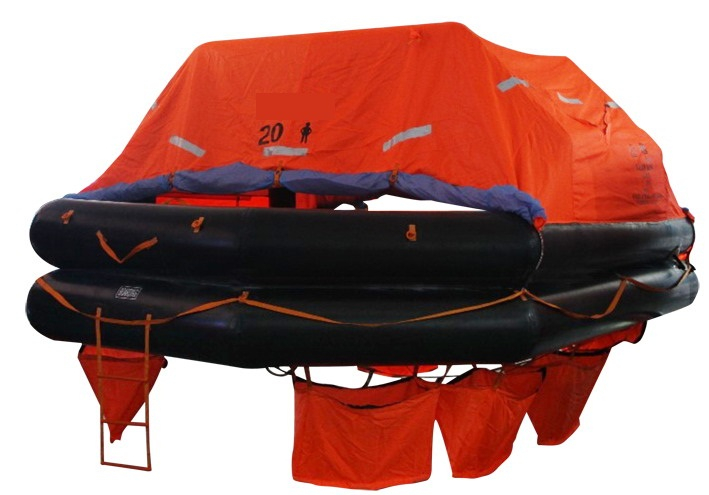

20 Persons Ship Use Throw Over Board Inflatable Liferaft




1.Certificate:CCS and EC.
2.SOLAS approved.
3.Open automatically.
4.material:fibre reinforced p



20 Persons Ship Use Throw Over Board Inflatable Life Raft :


1.Certificate:CCS.EC etc.

2.Reliable quality.

3.Open automatically.

4.material:fibre reinforced plastic.

The Throw-overboard Inflatable Liferafts are stored in containers on deck an inflate in the water when the painter line is pulled.

The standard sizes of the liferafts are available with:6,10,15,20 and 25 persons.

The liferafts with type approval by CCS and EC(EC was issued by GL).


It is suitable for installing ships on international voyages.

Product Standard

It meets the requirements of "Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged on International Voyages(1999)" of

 P.R.C.And SOLAS 74/96 Amendment,LSA and MSC,(81)70.

Equipment Outfitting

A Pack of B Pack(Ships engaged on Short international voyage)

20 persons Throw-over board Inflatable Life Raft:

The installation height is 18-50m from water surface.

Capacity:20 persons

Main dimension length:4600mm

Main dimension breadth:3000mm

(Co2+N2)*2/weight of gas:3200*2g

Max storage height:36M

Physical form:Ellipse

Gross weight:170kg

The FRP container:Diameter 700X1460

Packaging size: 1540X780X820MM
