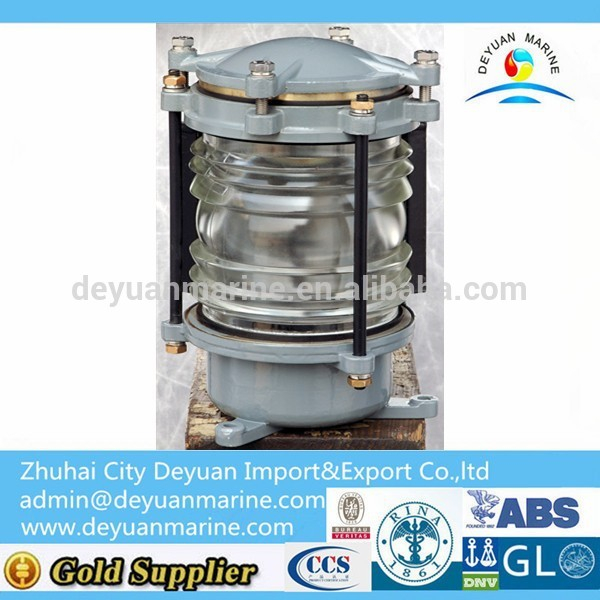

220V/120W Marine Outdoor Waterproof Masthead light DQ3
1.Diving navigation light can endure 6Mpa pressure,can dive under the water 400m.
2.Standard:CB518-2005 Diving navigation light.
The scope of application:
Used for the conventional powered submarine,nuclear-powered submarine to prevent collision as the lighting signal,
formation sailing signal,anchor signal,applied to
dive under the water 400m.
Production characteristic:
1.The shell,shell ring and cover all founded by silicon brass,have big com-pressive strength,can
Withstand the immersion corrosion ability of the seawater,good radiation performance.
2.The material of seal is neoprene,have the function of oil-resistant,pressure-resistant,mildewproof and
antiseptic-resistant,can prolong using life-span mildew resistant,good insulating performance,shock resistant,
good structural strength and so on.
3.Diving navigation light can endure 6Mpa pressure,can dive under the water 400m
Standard:
CB518-2005 Diving navigation light
Specification:
Name | type | Visibility | Level arc | Lamp holder | Bulb | Cable outside Diameter | Color | weight |
mastheadlight | DQ3 | 6n.m | 225° | B22b | 220V/120W |
Φ20 | transparent | 13.1kg |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
