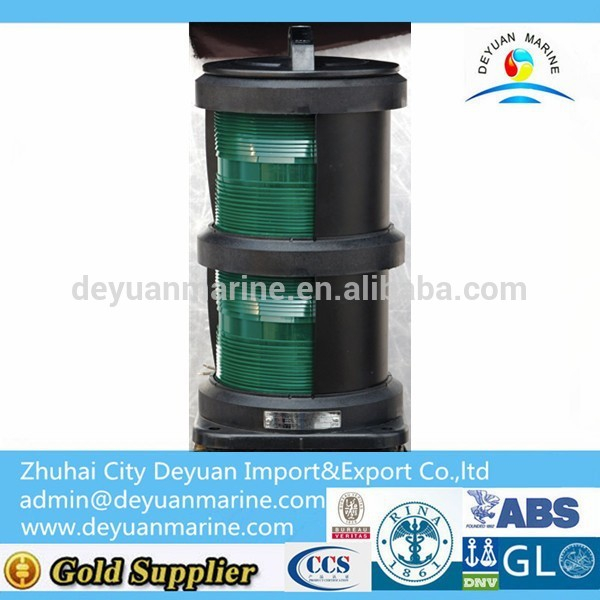

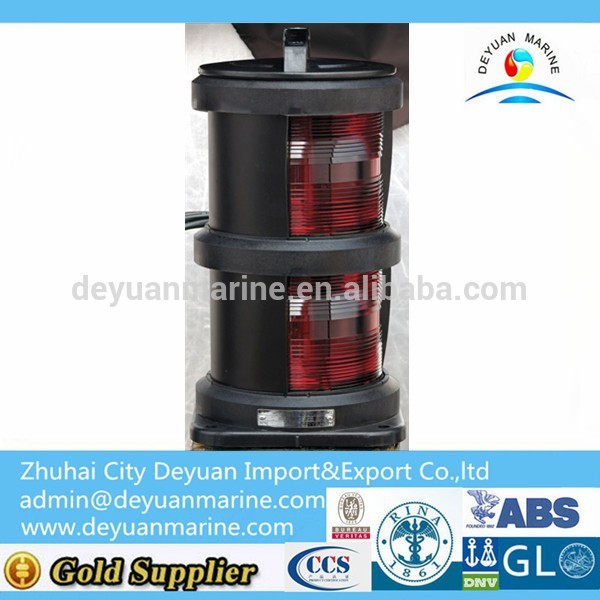

230V/65W Marine Double-deck Starboard Light / Navigation signal Starboard Light CXH1-101P
CXH1-101P Double-deck Navigation Signal Starboard Light
The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation
Product characteristic:
1.The shell is made of high-strength engineering plastic PA+GF,the lampshade adopts injection of PC,lens hood adopts good quality stainless steel.
2.The signal lights have the whole seal structure,it is waterproof under the bad environment.
3.The connection of the signal light's lamp holder and the base adopt plug-in type,can replace the up and down bulb as open the cover.
4.The signal lights adopt the signal light’s bulb which conform to the ship norm,and average life is not lower than 700h.
5.The signal lights can work normally under the temperature -30℃~55℃.
Production authentication:
1.Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
2.Passed the authentication of CE.
3.Approved by Germanischer Lloyd "GL".
4.Approved by MED/EC.
Adopt standard:
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships.
2.Confirm to the international standard IEC60598-1-2008.
3.Confirm to the standard of marine electric signal light's technical condition GB/T3028-2012.
Name | Type | Visibility | Level arc | Lamp holder | Bulb | Cable outside Diameter | Protection class | Color | Weight |
Starboard light | CXH1-101P | 3n.m | 112.5° | P28S | 230V/65W 115V/60W 24V/60W |
Φ9 | IP56 | Green | 4.15kg |
