Guangdong, China (Mainland)
DEYUAN MARINE
CXH2-1D
Other
Red
IP55
24V/60W 110V/65W 220V/65W
9.0KG
B22d
steel
Export Standard

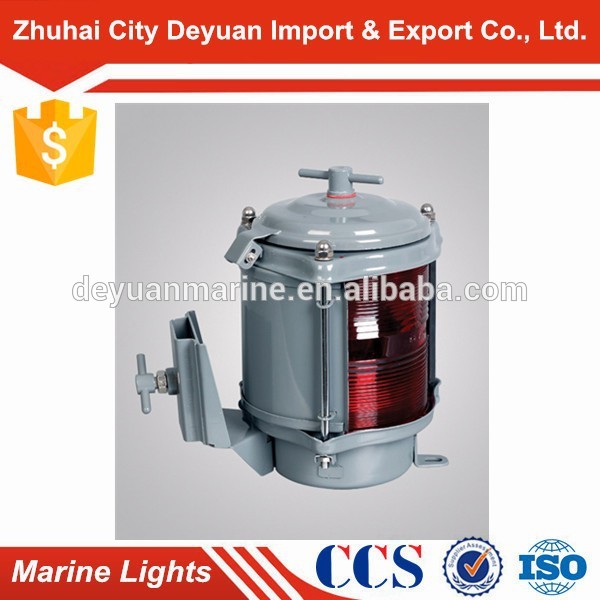

24V/110V/220V Single-deck Navigation Signal Port Light For Sale
Single-deck Navigation Signal Port Light
The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic:
1.it is convenient to install and replace the bulb,and there are automatic aleak holes in the bottom.
2.The shell adopts good quality metal material steel,the surface is painted the special mold-powder,has the feature of
corrosion-resisting and shock resis.
3.The lampshade adopts polycarbonate,it has the feature of ultraviolet radiation resistance and does not discolor ect.
Production Authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Adopt standard:
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships.
2.Confirm to GB/T3028-2012.
Name | Type | Visibility | Level arc | Lamp holder | Bulb | Cable outside Diameter | Protection class | Material | Color | Weight |
Starboard light | CXH1-1D | 3n.m | 112.5° | B22d | 24V/60W 110V/65W 220V/65W |
Φ12-Φ16 | IP55 | steel | Green | 9.0kg |
Port light | CXH2-1D | 3n.m | 112.5° | steel | Red | 9.0kg | ||||
Masthead light | CXH3-1D | 6n.m | 225° | steel | Transparent | 9.0kg | ||||
Stern light | CXH4-1D | 3n.m | 135° | steel | Transparent yellow | 9.0kg | ||||
All-round light | CXH6-1D | 3n.m | 360° | steel | Red green transparent | 9.0kg |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
