Guangdong, China (Mainland)
DEYUAN MARINE
CXH6-21P
Other
Red green transparent
IP56
24V25W 12V/25W
1.2KG
BAY15d
CCS ABS LR GL etc
Deyuan
Export Standard
5-10days

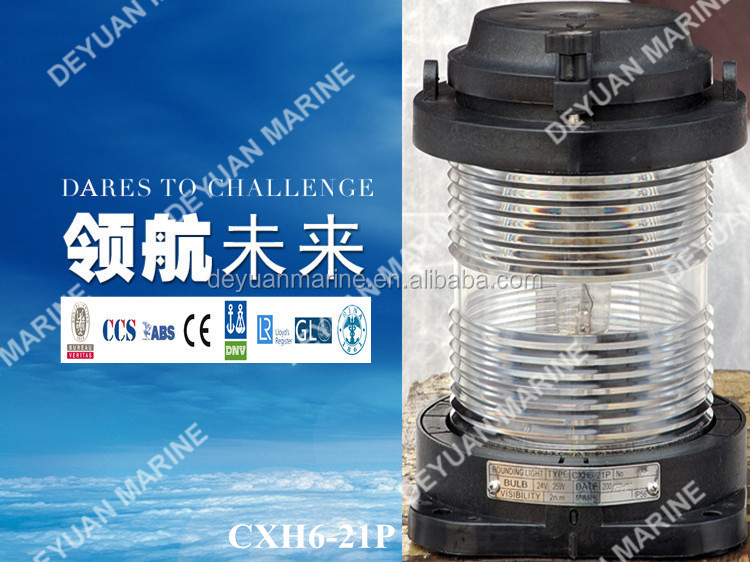

24V IP56 Navigation Signal All-round Light CXH6-21P
The scope of application:
Applied to the ships with the length 12m or above 12m(<50m) as lamp signal liaison when night navigation.
Product characteristic:
1.The shell is made of high-strength engineering plastic PA+GF,the lampshade adopts injection of PC,lens hood adopts good quality
stainless steel.
2.The signal lights have the whole seal structure,it is waterproof under the bad environment.
3.the signal lights choose the special signal bulb which conform to the ship crterion,can replace as open the cover.
4.The signal lights can work normally under the temperature -30℃~55℃.
Production authentication:
1.Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
2.Passed the authentication of CE.
Adopt standard:
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships.
2.Confirm to the international standard IEC60598-1-2008.
3.Confirm to the standard of marine electric signal light's technical condition GB/T3028-2012.
Name | Type | Visibility | Level arc | Lamp holder | Bulb | Cable outside Diameter | Protection class | Color | Weight |
Starboard light | CXH1-21P | 2n.m | 112.5° | BAY15d | 12V25W40cd 24V25W60cd |
Φ9 | IP56 | Green | 1.2kg |
Port light | CXH2-21P | 2n.m | 112.5° | Red | 1.2g | ||||
Masthead light | CXH3-21P | 5n.m | 225° | Transparent | 1.2kg | ||||
Stern light | CXH4-21P | 2n.m | 135° | Transparent yellow | 1.2kg | ||||
All-round light | CXH6-21P | 2n.m | 360° | Red green transparent | 1.2kg |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
