DEYUAN MARINE
CXH2-10S
Other
Red
24V/60W60cd 110V/60W60cd 220v/65w60cd
P28S
IP56
Export Standard

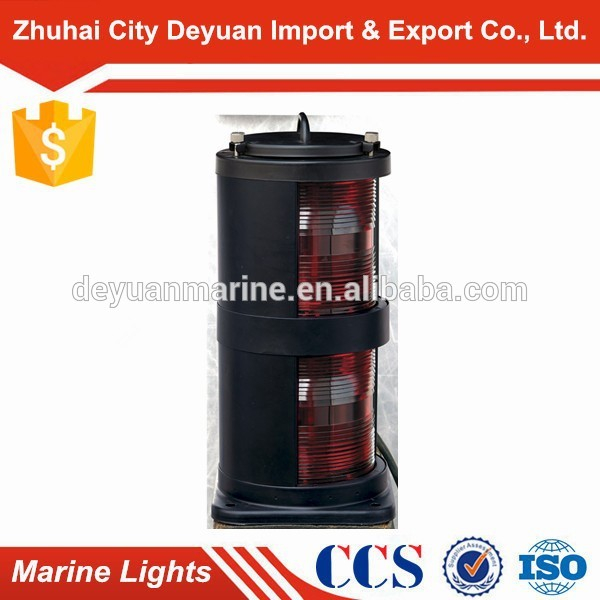

60/65W Double-Deck Stainless Steel Navigation Signal Port Light CXH2-10S
Application scope:
Used in ships with length 50m or above 50m as lamp signal liaison when night navigation.
Product characteristics:
1.The shell adopts good quality stainless steel plate. The surface is painted with special nold-powder, has the feature of corrosion
resisting and shock resistance.
2.Whole seal structure, waterproof under severe environment.
3.It is more convenient to replace the bulb because of the integrated design for the up and down layer.
4.The lampshade adopts PC material, chroma stable and ultraviolet radiation resistance and down lampholder.
Certificates:
Approved by CCS (China Classification Society), ZY of China Fishery Inspection.
Standard:
1.Conform to THE INTERNATIONAL REGULATION FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY
NORMS FOR STEEL SHIPS.
2. Conform to the standard of marine electric signal light's technical condition GB/T 3028-2012.
Name | Type | Visibility | Level arc | Lamp holder | Bulb | Protection class | Cable outside diameter | Color |
Starboard light | CXH1-10S | 3n.m | 112.5° | P28S |
24V/60W60cd 110V/60W60cd 220v/65w60cd | IP56 | Φ11 | Green |
Port light | CXH2-10S | 3n.m | 112.5° | Red | ||||
Masthead light | CXH3-10S | 6n.m | 225° | White | ||||
Stern light | CXH4-10S | 3n.m | 135° | White Yellow | ||||
All-round light | CXH6-10S | 3n.m | 360° | Red, Green White |

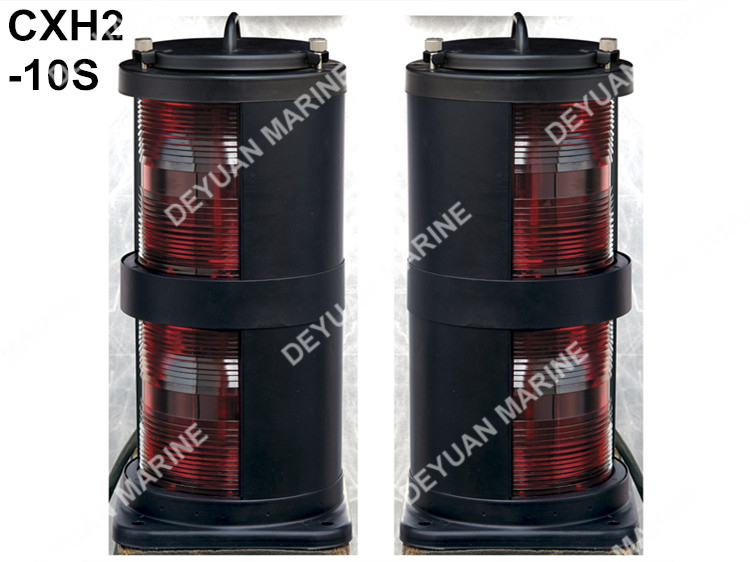

CXH2-10S Double-deck Stainless Steel Navigation Signal Port Light
