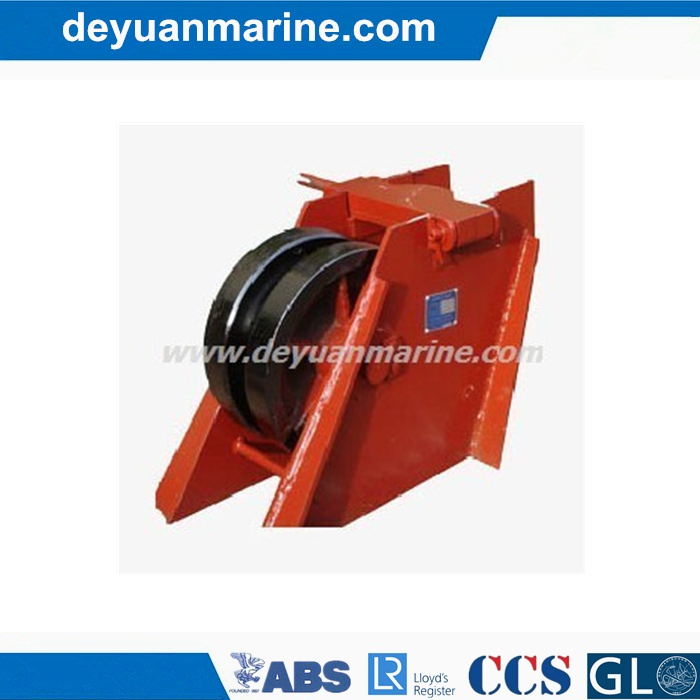

Anchor Chain Stopper with Roller

Inquire Add to Basket

  • DY-ACS

  • Precision Die Casting

  • CNC Machining

  • Baking Paint

  • 6

  • SGS, CE

  • Deyuan

  • China

  • Cold Chamber Die Casting Machine

  • Machinery Parts

  • Q235

  • Assorted

  • 1

  • Grey Epoxy Primer

  • ABS, GL, DNV, BV, CCS

Anchor Chain Stopper with Roller


Marine Chain Cable Stopper:

1. Type: Roller Type anchor chain stopper
2. Material: Q235, ZG230-450
3. Suitable chain cable Dia.: From 17mm---132mm
4. Certificate: BV, LR, SGS
5. Paint: Grey Epoxy Primer, for the middle paint and surface according to your requirement.


Parameters:

Dia.of chain (mm) Size(mm) Weight(KG)

H L L1
12.5-14 112 176 102 8.6
16-17.5 138 214 130 18
19-20.5 154 234 146 26.7
22-24 176 254 168 39.4
26-28 198 286 192 58
30-32 226 320 214 85
34-36 248 350 240 113.5
38-40 274 388 266 157.6
42-44 296 424 294 204
46-48 324 454 316 257.7
50-52 346 480 338 310
54-56 372 514 362 393
58-60 392 542 378 547.9
62-64 422 574 402 572.6
66-68 444 604 424 663.7
