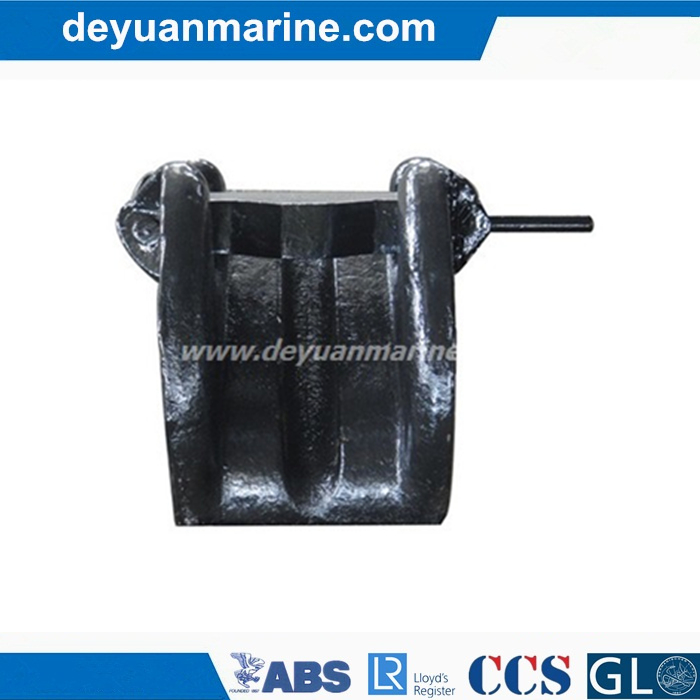

Bar Type Chain Stopper/Marine Chain Stopper

Inquire Add to Basket

  • DY-S

  • Soluble Die Casting

  • CNC Machining

  • Spray Coating

  • 8

  • Assorted

  • ABS, GL, DNV, BV, CCS

  • Cold Chamber Die Casting Machine

  • Machinery Parts

  • Cast Steel

  • Vertical

  • 1

  • Deyuan

  • China

Bar Type Chain Stopper/Marine Chain Stopper


Marine Chain Cable Stopper:

JIS F-2015 Cast Steel Bar Type Chain Stopper
JIS F-2002 Cast Steel Bar Type Chain Stopper: 17~68MM
JIS F-2015 Cast Steel Bar Type Chain Stopper: 38 ~78MM
JIS F-2032 Roller Pawl Type Chain Stopper: 70 ~132MM
Chain stopper Ulster type: 25 ~108MM
Chain Stopper OCIMF Type: 54 ~78 MM


Parameters:

Chain Dia.(mm) Dimensions(mm)
B H H2 L H B2 Weight(KG)
38-40 336 378 130 540 68 65 110
42-44 336 412 142 590 75 72 138
46-48 397 450 155 640 82 78 177
50-52 428 491 170 695 88 85 214
54-56 457 528 182 745 95 92 261
58-60 488 465 195 795 102 98 319
62-64 517 600 208 850 109 104 396
66-68 547 635 220 900 116 110 428
70-73 582 675 233 960 125 117 609
76-78 617 715 245 1020 133 123 74
Remark Size 62mm to 78mm counter-weight shall be equipped.
The bar can be opened in right or left hand side
