Guangdong, China (Mainland)
DEYUAN MARINE
CXH2-1P
Other
Red
IP56
24v/60w 110v/65w 220v/65w
3.6KG
B22d
3-6 n.m
112.5°-360°
CCS CE GL
High
Exported packing
Export Standard
5-10days

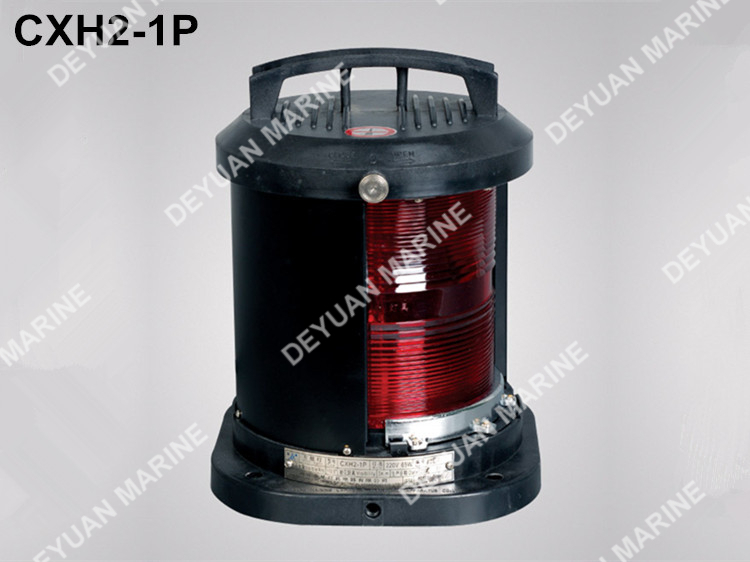

Boat Watertight Marine Single-deck Navigation Signal Port Light CXH2-1P
The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic:
1.It is convenient to install and replace the bulb, and there are automatic aleak holes in the bottom.
2.The shell is made of high intensity engineering plastics PA+GF injection, has the feature of corrosion-resisting, shock resistance ect.
3.The shade is made of polycarbonte,UV resistance and non-discolouring color.
Production authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Executive standard:
1.Accord with International regulations for preventing collisions at sea 1972 and Classification of seagoing steel ships of specification.
2.Accord with international standard IEC60598-1-2008.
3.Confirm to the standard of marine electric signal light's technical condition GB/T3028-2012.
Name | Type | Visibility | Level arc | Bulb | Bulb | Protection class | Color | Weight |
Starboard light | CXH1-1P | 3n.m | 112.5° | B22d | 24v/60w 110v/65w 220v/65w | IP56 | Green | 3.6KG |
Port light | CXH2-1P | 3n.m | 112.5° | Red | ||||
Masthead light | CXH3-1P | 6n.m | 225° | Transparent | ||||
Stern light | CXH4-1P | 3n.m | 135° | Transparent Yellow | ||||
All-round light | CXH6-1P | 3n.m | 360° | Transparent Green Red |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
