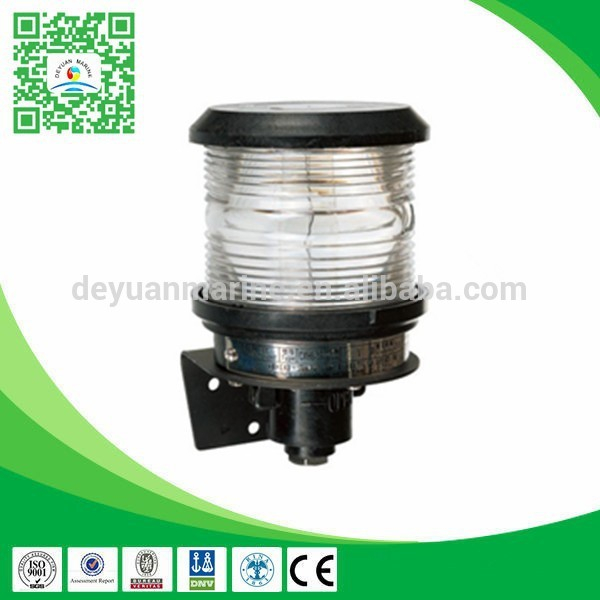

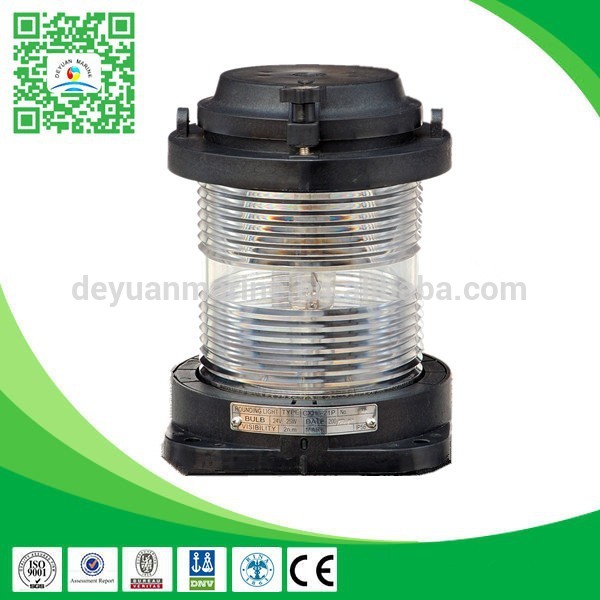

CXH Series Marine Navigation Signal All-round Light
The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic:
1.It is convenient to install and replace the bulb, and there are automatic aleak holes in the bottom.
2.The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has the feature of corrosion-resisting and shock resistance.
3.The lampshade adopts polycarbonate, it has the feature of ultraviolet radiation resistance and does not discolor ect.
Production authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Adopt standard:
1.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2.Conform to GB/T3028-2012 standard.
Specification:
Name | Type | Visibility | Level arc | Bulb | Bulb | Protection class | Color | Material | Weight |
All-round light | CXH6-20C | 2n.m | 360° | B15d | 24V/30W | IP55 | Transparent Green Red | steel | 3.6kg |
All-round light | CXH6-10P | 3N.M | 360° | B22d | 24v60w 110v65w 220v65w | IP56 | Red Green White | 3.6KG |
All-round light | CXH6-10B | 3n.m | 360° | B22d | 24v60w 110v65w 220v65w | IP55 | φ14-φ16 | Red, Green, Transparent | 9.0kg |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Gary
E-mail: sales9[at]deyuanmarine[dot]com
Skype: marinesales9
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955750
Web: http://www.deyuanmarine.com
